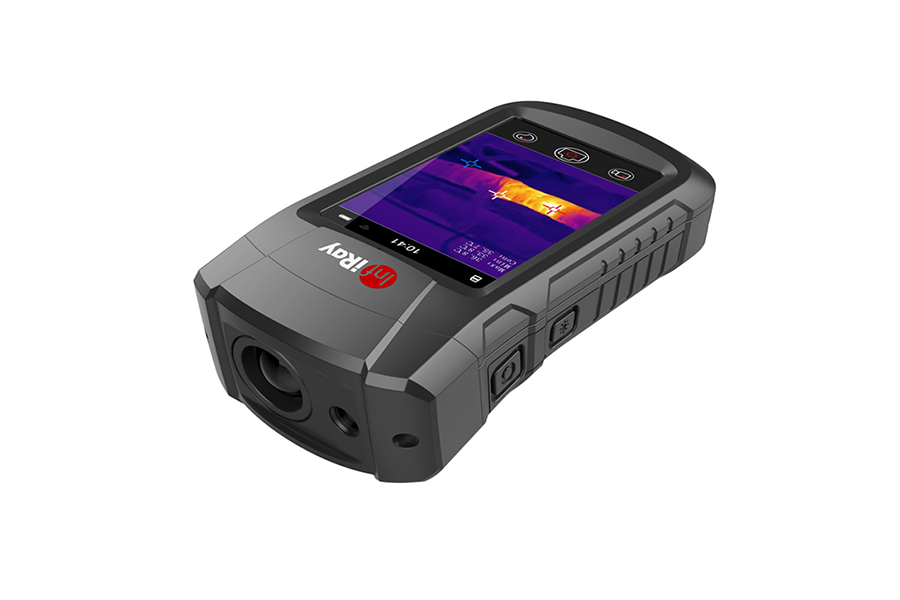

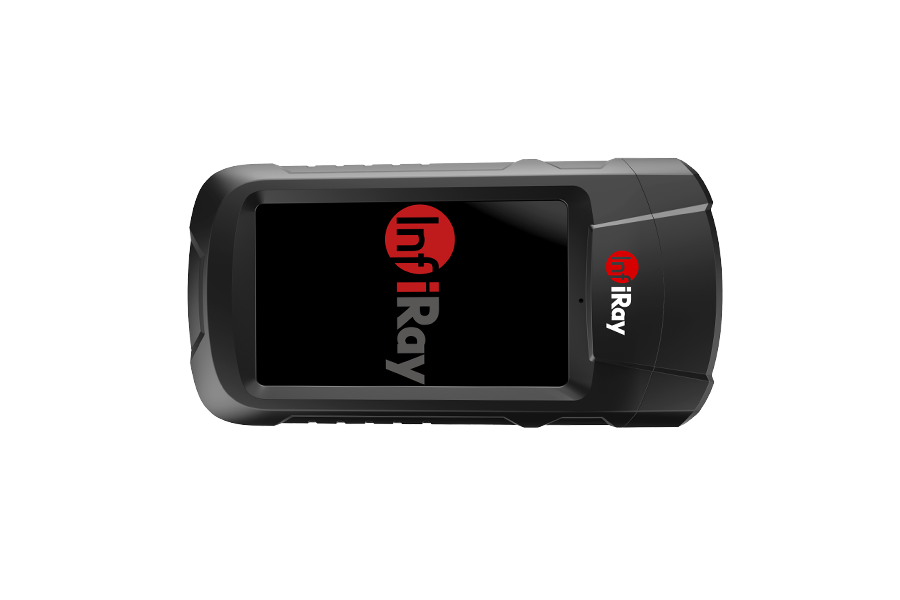

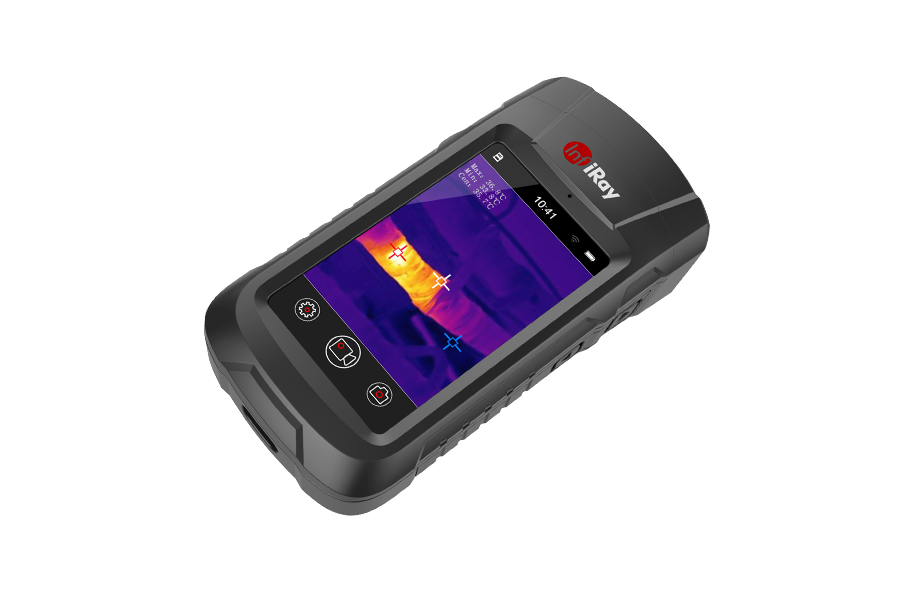

Xview is a pocket-size handheld thermal imaging camera which is embedded with 12μm strong thermal sensor, compact but powerful-. Excellent thermal imaging performance, easy operation for temperature measurement, Xview will bring high-level technical superiority into your colorful life.

Main specifications:

Resolution: 256 x 192

Pixel Size: 12μm

Focal length: 6.8mm/9.0mm

Application scenarios: Night patrols, plumbing/electrical/heating repairs, house leak checks, emergency rescue, animal research.


Meet Xview Series


8 Exceptional performances

● 12 μm thermal sensor with 256 x 192 resolution;

● Large 3-inch LCD display;

● 25Hz high frame rate, capable of motion capture;

● Accurate temperature measurement range: 400℃±3℃;

● <200G light weight, compact and portable;

● High/low temperature spots automatic tracking;

● Multi-device image transfer and sharing via Wi-Fi.




High resolution and frame rate offer clear and smooth imaging

● 256 x 192 detector resolution provides ultimate clarity that you can classify your hair fromimages;

● 25Hz frame rate guarantees smooth imaging output;

● Various color palettes offer customized display options for different application scenes.



High-level Germanium lens for wide and versatile applications

● Professional testing for instruments/meters/circuits, etc;

● Security, night patrols, search and rescue(SAR), industrial equipment testing.


Professional accurate temperature measurement

● Connected with special APP, the Xview can offer point-line-plane temperature measurements;

● NETD≤60mK with ±3℃ measuring accuracy;

● -20℃~120℃ wide measuring range;

● Xview offers temperature correction parameters to ensure more accurate measuring.




  • Product Parameters Comparison
  • ModelXview-V2      Xview-Search
    Resolution256×192
    NETD<60mk   <50mk
    Frame Frequency25fps
    FOV25.5°×19.2°   19.6°×14.7°
    Lens6.8mm   9.0mm
    FocusingFixed
    Image Correction Auto
    Palette8   palettes (White-hot/Black-hot/Iron-Red etc.)
    Thermometric
    Measuring range-20℃   to + 120 ℃ (Extend range to +400℃)   -10℃   to + 80 ℃
    Accuracy±3℃   or 3% of measuring range (3% in extend mode)   ±3℃   or 3% of measuring range
    Point MDeasurementMaximum, Minimum, Center
    EmissivityVaries   between 0.0 to 1.0
    RangeDefault, can set manually
    Environment TemperatureDefault, can set manually
    Protocol
    UVCSupported
    WIFISupported
    Image Stream
    Stream FormatUVC:YUYV   WIFI:RTSP
    Imaging Saving
    Storage MediumInternal   memory (Flash), optional internal TF card, maximum 64 GB
    File FormatJPEG、MP4
    Environment Parameter
    Operation Temperature-10℃   to +50℃
    Storage Temperature-30℃   to +70℃
    Humidity≤95%   None-condensable
    Physical Parameter
    Dimension 123×61×35mm
    Weight<200g
