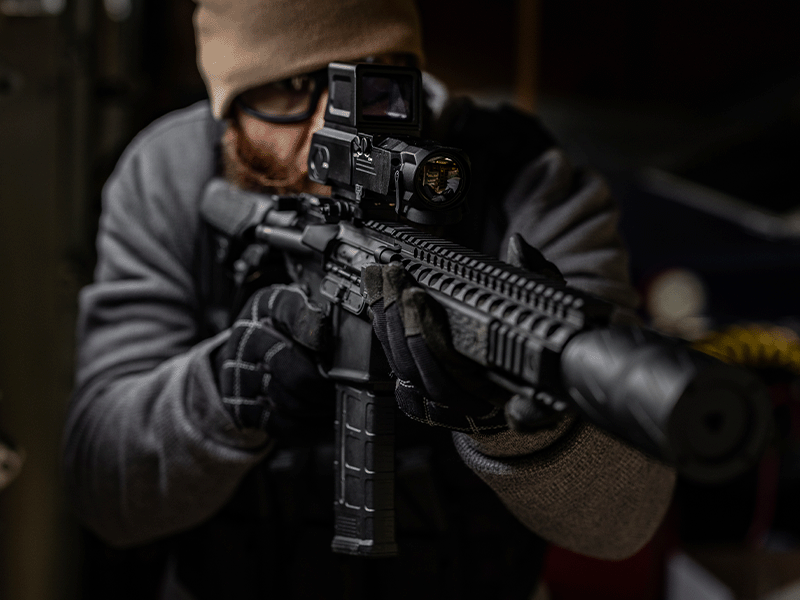

Fast FAH25: The All-in-One day & night scope for Every Mission. With versatile image modes, high refresh rates, and superior thermal sensor quality, it's your reliable, precise, and rugged companion. Elevate your shooting experience with Fast FAH25.
Meet with Fast Series

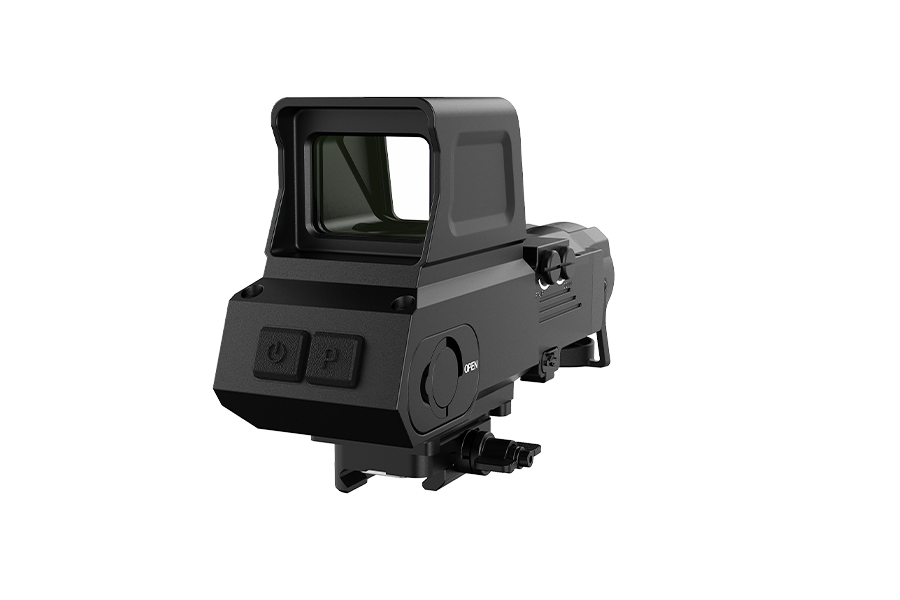

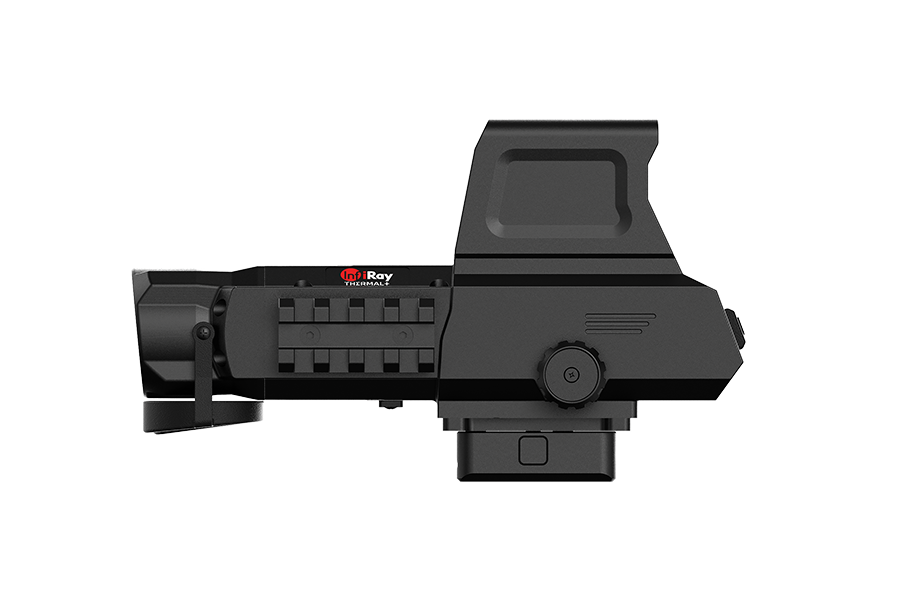

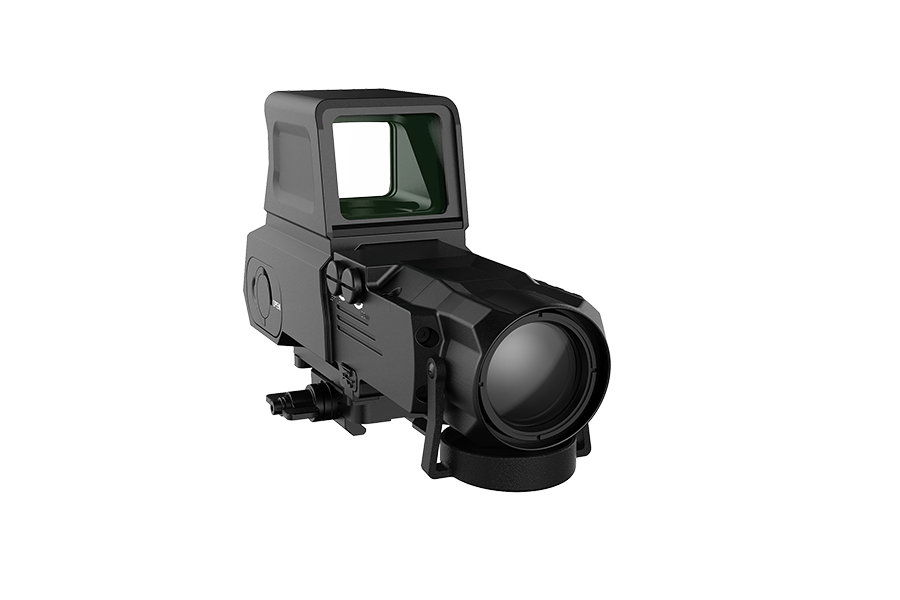

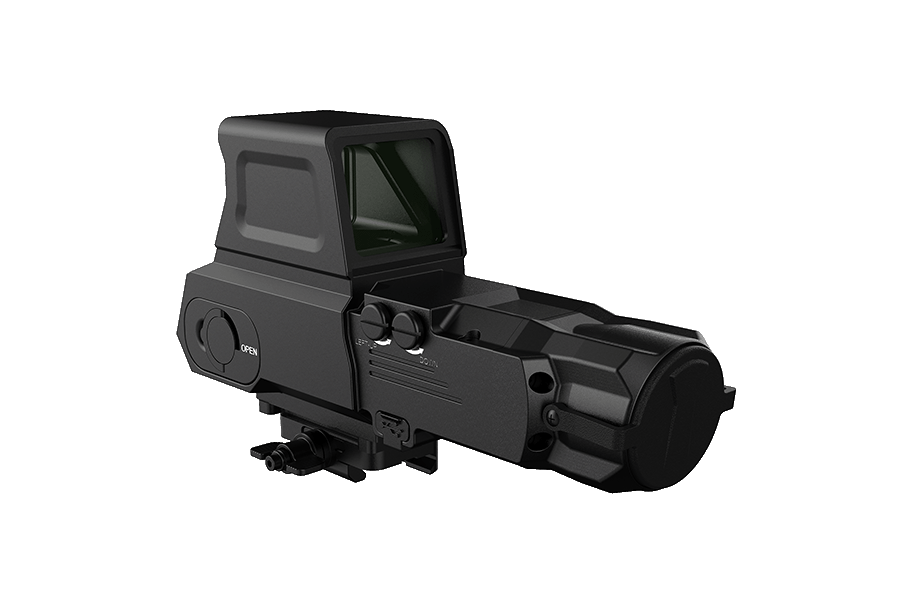

All-in-One Day & Night Scope

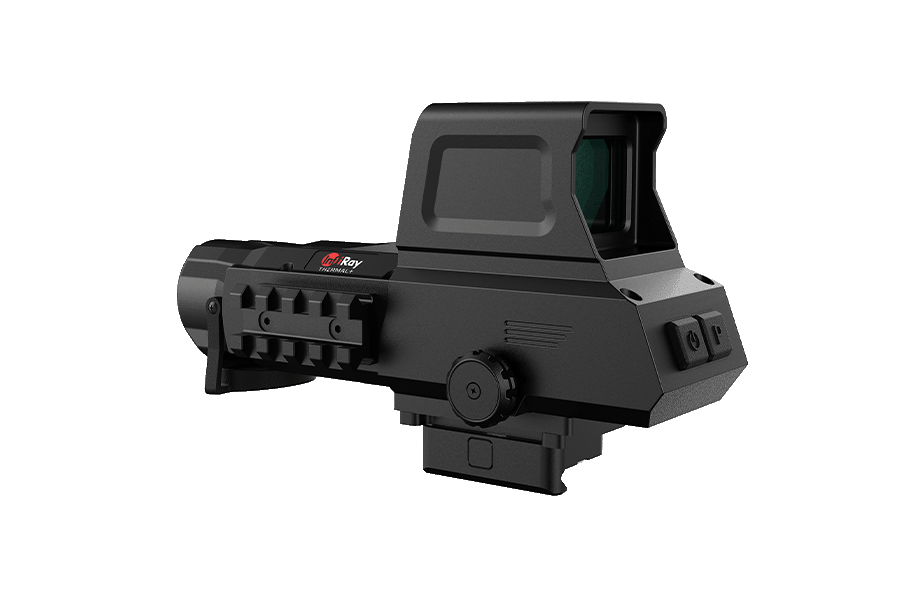

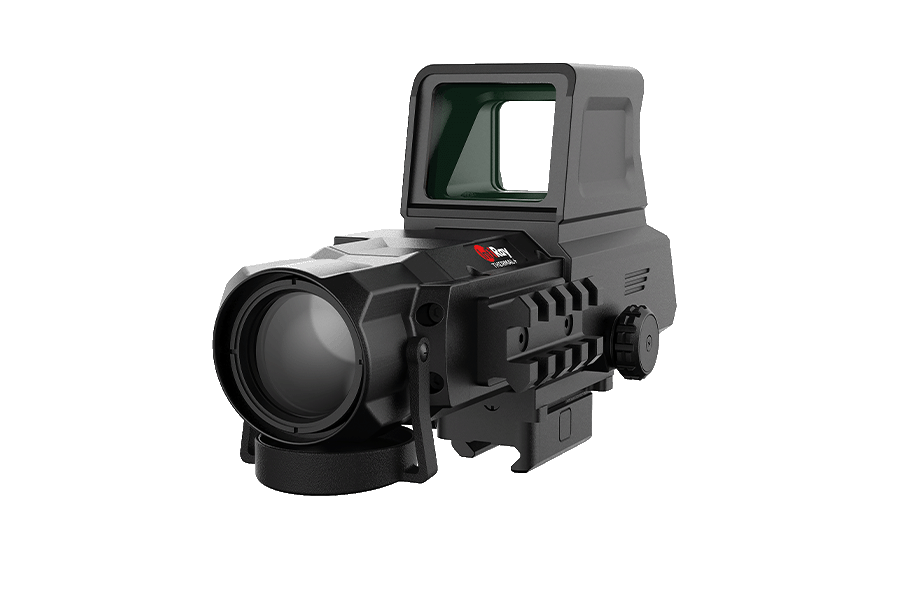

Fast FAH25: The All-in-One day & night scope for Every Mission. With versatile image modes, high refresh rates, and superior thermal sensor quality, it's your reliable, precise, and rugged companion. Elevate your shooting experience with Fast FAH25.
Versatile Image Modes for Every Shooting Scenario
Fast FAH25 offers a unique advantage with its four distinct image modes, catering to a wide range of shooting needs. Whether it's daytime camouflage detection, navigating through dense smoky environments, enhancing target visibility in wooded terrain, or operating in the cover of night with infrared vision, Fast FAH25's versatile image modes have you covered. These modes are designed to adapt seamlessly to various shooting scenarios, ensuring that you're always equipped to handle the demands of your mission. Explore the possibilities and elevate your shooting experience with Fast FAH25.
Unmatched Clarity and Sensitivity
Fast FAH25 features a state-of-the-art 12µm, 640x512 resolution sensor with NETD<25mK for exceptional sensitivity. Its advanced multi-layer coating technology minimizes stray light interference, ensuring excellent transparency for daytime use. Coupled with a high-visibility green OLED display, it ensures a superior viewing experience, delivering precision and clarity in all shooting conditions.
Wide View, Rapid Aim
Fast FAH25's design includes a generous 34mm x 25mm viewing window, allowing users to effortlessly spot and track targets with precision. With a 1x magnification rate, its advantage shines in close-range scenarios, enabling rapid target acquisition and allowing users to maintain both eyes open for enhanced depth perception and situational awareness. Elevate your tactical prowess with Fast FAH25's spacious viewing window and rapid target acquisition capabilities.
Adaptability and Enhanced Aiming

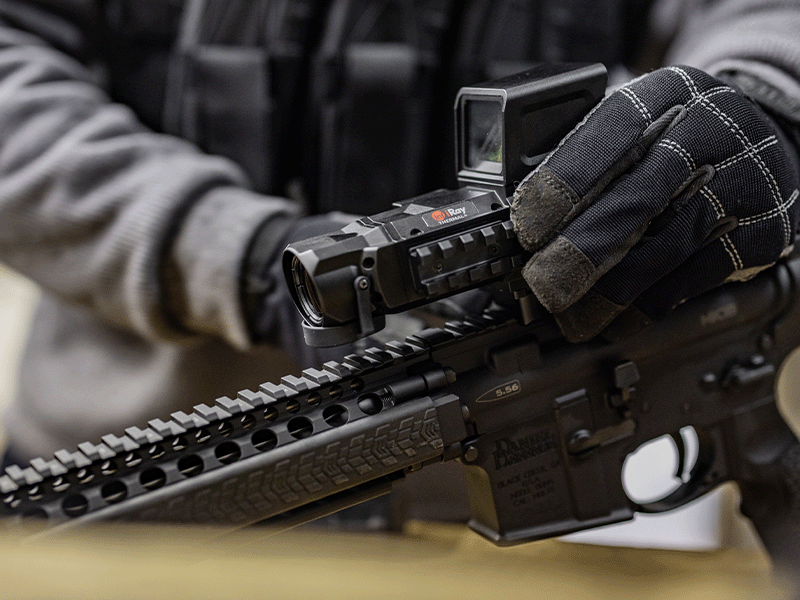

When you have long-range shooting needs, you can also choose to use a 3x magnification scope（optional）. Its quick-detach mounting structure caters to different user preferences for red dot and infrared products, ensuring top-notch performance for every user.

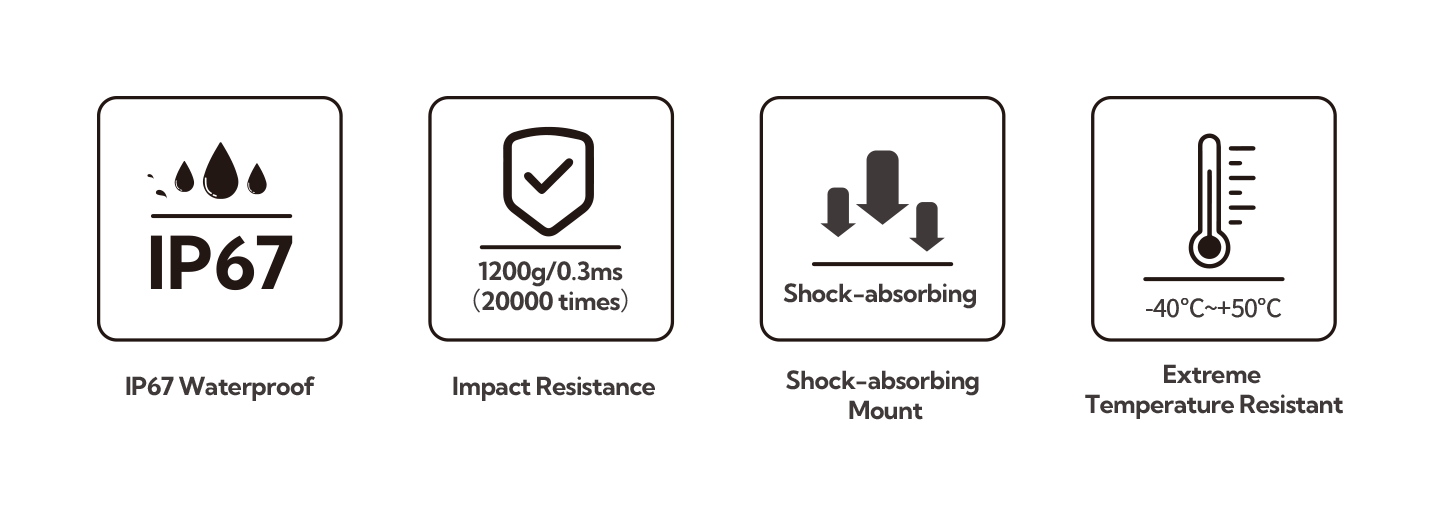

Rugged, Reliable, Ready
IP67 Waterproof | Impact Resistance | Custom-made Shock-absorbing Mount ｜Extreme Temperature Resistant
You can find more price info & buy here
Download
Manual- Fast FAH25
Brochure- Fast FAH25
Quick Guide- Fast FAH25
Model | Fast FAH25/1×34D | |
Visible Light Channel | Visual magnification | 1× |
Display | OLED with high brightness | |
Window size | 34mm×25mm | |
Eye relief | 90mm | |
Thermal Channel | Detector | 640×512/12μm |
Objective lens | f25 /F1.0 | |
Recognition distance | 590m | |
NETD | ≤25mk | |
Frame rate, Hz | 50Hz | |
FOV | 17.5°x14° | |
Focus scope | 5m-∞ | |
Digital zoom | 1×, 2× | |
Usage Modes | Red dot/thermal/fusion/outline | |
Polarity | White hot/black hot | |
Power Supply | Battery | 2×CR123 |
Battery life | Thermal mode > 4 h; red dot mode > 65 h | |
Interface | 5V (USB C) | |
Dimensions and Interface | Mechanical interface | Picatinny |
Weight (with battery) | <652g | |
Dimension | 175mm×63mm×104mm | |
Operating Environment | Operating temperature | -40℃~+50℃ |
Storage temperature | -50℃~+60℃ | |
IP rating | IP67 |
Model | Fast FAH25/1×34D | |
Visible Light Channel | Visual magnification | 1× |
Display | OLED with high brightness | |
Window size | 34mm×25mm | |
Eye relief | 90mm | |
Thermal Channel | Detector | 640×512/12μm |
Objective lens | f25 /F1.0 | |
Recognition distance | 590m | |
NETD | ≤25mk | |
Frame rate, Hz | 50Hz | |
FOV | 17.5°x14° | |
Focus scope | 5m-∞ | |
Digital zoom | 1×, 2× | |
Usage Modes | Red dot/thermal/fusion/outline | |
Polarity | White hot/black hot | |
Power Supply | Battery | 2×CR123 |
Battery life | Thermal mode > 4 h; red dot mode > 65 h | |
Interface | 5V (USB C) | |
Dimensions and Interface | Mechanical interface | Picatinny |
Weight (with battery) | <652g | |
Dimension | 175mm×63mm×104mm | |
Operating Environment | Operating temperature | -40℃~+50℃ |
Storage temperature | -50℃~+60℃ | |
IP rating | IP67 |

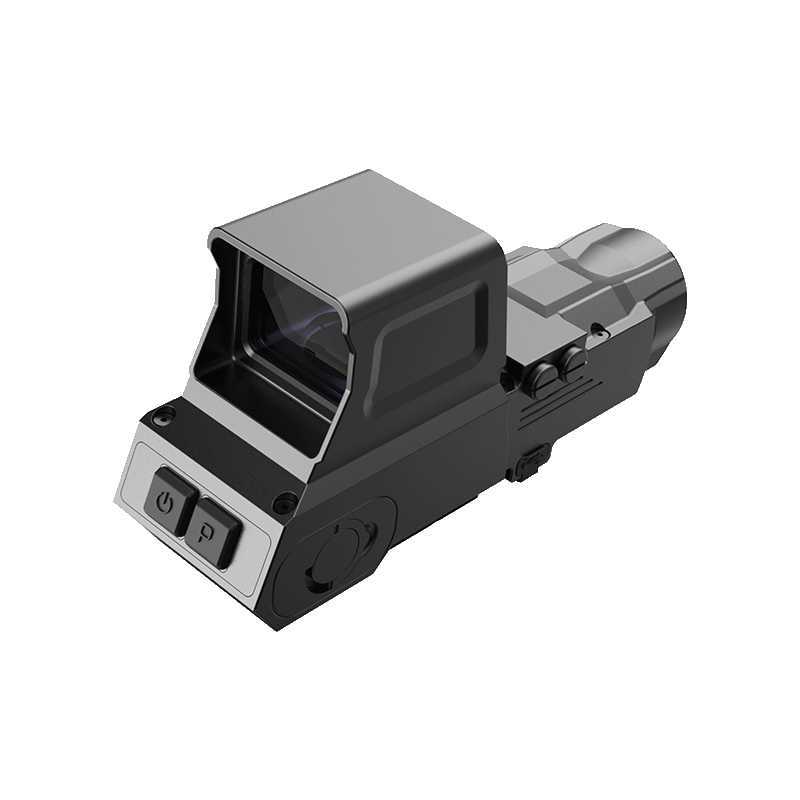

Fast is a red-dot/thermal fusion scope, combined with the red dot and thermal imaging technology. It directly integrates thermal imaging with realistic scenes to enhance users' situational awareness. Which facilitates all-weather outdoor hunting, home security and law enforcement.
