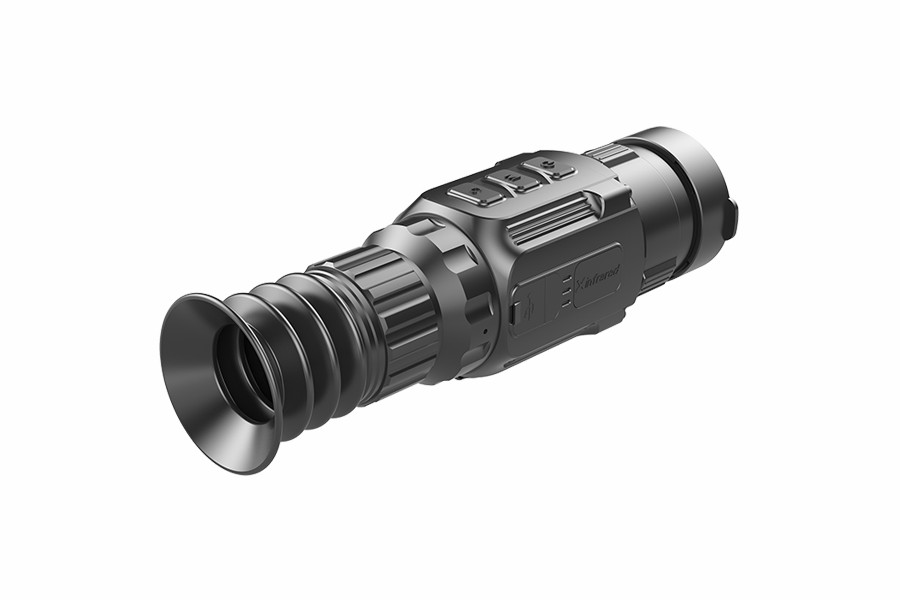

Thermal Imaging Rifle Scope Saim Series (SCP19/SCL35/SCT35)
Thermal Imaging Rifle Scope Saim Series (SCP19/SCL35/SCT35)

Thermal Imaging Rifle Scope Saim Series (SCP19/SCL35/SCT35)

Thermal Imaging Rifle Scope Saim Series (SCP19/SCL35/SCT35)

The Saim series thermal imaging scope is designed with portability and easy for operation. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in condition of rainy or foggy.


Meet Saim Series

The Saim series thermal imaging scope is designed with portability and easy of operation in mind. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy weather.


High Image Quality

Built-in InfiRay detector and matched with Matrix TM powerful algorithm designed to increase imaging clarity and overall image detail. Matrix TM results in a sharper, more detailed field of view and enhanced object identifcation capabilities.the Saim series provides high image quality, improving the image contrast automatically, strengthening the image hierarchy, so to find target faster.


User-Friendly Interface

Simple and easy to operate is the initial design intention of the Saim series. Full icon design, easy to understand, and translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.


Image Sharpness Adjustment

Image sharpness can be adjusted manually to fit individual preferences for high quality image, and there are four levels for option by short pressing menu key.


Ultraclear Mode

Ultraclear mode is specially for bad weather such as heavy fog and raining, that make Saim be more sensitive and get more details.


Compact Size and Lightweight

With reasonable layout, compact structure and light weight, the Saim series is more comfortable and convenient for outdoor use.


High Shock Resistance

The Saim series features exceptionally high shock resistance up to 1000G.


Built-in Video recorder and  WIFI connection

The SCT is equipped with a 16GB recorder which enables video shooting and image capturing at the time of observation 16GB which can  support to store about 20,000 pictures. Video and photo files saved in the internal memory can be transferred to a computer via wired connection or to a phone via WiFi. The wifi hotspot of the product supports  simultaneous connection of four devices.





External Power Supply

The working time can be significantly prolonged by  connecting with high capacity external power supply  units, i.e. portable power source via Type-C cable  presented in the package.


Picture-in-Picture Function

Picture-in-Picture improves accuracy by providing a 2x magnified image  of the reticle area at the top of the display. It helps to magnify the target  while retaining the rest of the field of view visible.


Long detection range 1800 meters

Actual range of detection of a human figure (1.8x0.5 m) in the field (human has outerwear, in the field against the background of the forest for the Saim thermal scopes up to 1818 meters, depending on the model.




Download

Brochure-Saim Series

Brochure-Saim Series

Reticles-SCP19/SCL25/SCL35

Reticles-SCP19/SCL25/SCL35

Manual-SCL35

Manual-SCL35

Manual-SCP19

Manual-SCP19

Manual-SCT35

Manual-SCT35

Reticle-SCT35

Reticle-SCT35
  • SCP19
  • SCL35
  • SCT35
Resolution256x192
Pixel Size, um12
NETD, mk≤40
Frame Rate, Hz25
Objective Lens, mm19
Field of View9.2°×6.9°
Magnification, ×2.3-4.6
Diopter Adjustment-5D~+5D
Display Resolution1280×960 LCOS
WiFi & Recorder×
Compass & MsensorMsensor
Amount of built-in memory, GB×
Battery TypeCR123×2
Max. Battery Life, h8
Weight (without batteries), g<380
Dimension, mm186×61×61

Detection  Range, m

 (Target size:1.7m×0.5m, P(n)=99%)

986


Resolution384x288
Pixel Size, um17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm35
Field of View10.7°×8°
Magnification, ×2.0-8.0
Diopter Adjustment
Display Resolution1280×960 LCOS
WiFi & Recorder×
Compass & Msensor×
Amount of built-in memory, GB×
Battery TypeCR123×2
Max. Battery Life, h8
Weight (without batteries), g<410
Dimension, mm195×61×61

Detection Range, m

(Target size:1.7m×0.5m, P(n)=99%)

1283


Resolution384x288
Pixel   Size, um12
NETD, mk≤40
Frame   Rate, Hz50
Objective   Lens, mm35
Field of View7.5°×5.7°
Magnification, ×2.85-11.4
Diopter   Adjustment-5~+5
Display   Resolution1280×960 LCOS
WiFi & Recorder
Compass & Msensor
Amount of   built-in memory, GB16
Battery TypeCR123×2
Max. Battery   Life, h3.5
Weight (without   batteries), g<410
Dimension, mm195×61×61

Detection Range, m

(Target size:1.7m×0.5m, P(n)=99%)

1818


  • Product Parameters Comparison
  • ModelSCP19SCL35SCT35
    Resolution256x192384x288
    Pixel Size, um121712
    NETD, mk≤40
    Frame Rate, Hz2550
    Objective Lens, mm1935
    Field of View, °9.2°×6.9°10.7°×8°7.5°×5.7°
    Magnification, ×2.3-4.62.0-8.02.85-11.4
    Diopter Adjustment-5D~+5D
    Display Resolution1280×960 LCOS
    WiFi & Recorder××
    Compass & MsensorMsensor×
    Amount of built-in memory, GB××16
    Battery TypeCR123×2
    Max. Battery Life, h843.5
    Weight (without batteries), g<380<410
    Dimension, mm186×61×61195×61×61

    Detection Range, m

    (Target size:1.7m×0.5m, P(n)=99%)

    98612831818
