Thermal Imaging Monocular EYE III Series
Thermal Imaging Monocular EYE III Series

Thermal Imaging Monocular EYE III Series

Thermal Imaging Monocular EYE III Series

Generating from the EYE series, EYEⅢ keeps the exceptional tech strength of EYEⅡ, but is generated for another purpose: Improve your hunting efficiency during your time using it. That is what EYEⅢ is for, being user-oriented by providing ultra-clear imaging and easy operation such as a quick start design and a scroll wheel to perform most of the operations.



Meet with EYEⅢSeries


The device is automatically turned on and off when you open or close its lens cap, saving you the trouble of locating the buttons in the dark.

Another way to power on the device is to long press the scroll wheel.



EYEⅢ employs a scroll wheel. "Rotate + press down" can perform most of the operations of traditional buttons to achieve efficient hunting.



EYEⅢ adopts a magnetic charger. Magnetic charging head for fast charging, which can charge the battery to 90% in one hour, capable of more than 8 hours of hunting.



EYEⅢ is equipped with a high-performance infrared detector with a NETD<25mK. It will help you discover tiny details while the OLED screen will guarantee the image is well-presented.



The enhanced 5.0 basic magnification enables EYEⅢ to help us hunters identify targets more simply and quickly, thus greatly improving the hunting success rate.



The built-in Ultra-clear mode thermal technology of InfiRay is designed for inclement weather such as rainy, snowy, foggy days, etc., to increase thermal imaging clarity and overall details.

EYEⅢ adopts unique scene mode image algorithms based on different using conditions to save you the operation of adjusting parameters.



The recording and built-in Mic can realize audio synchronization input, so no more quiet videos with no sound.



EYEⅢ comes with 32GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via the app.



Download

Brochure-EYE III Series

Brochure-EYE III Series

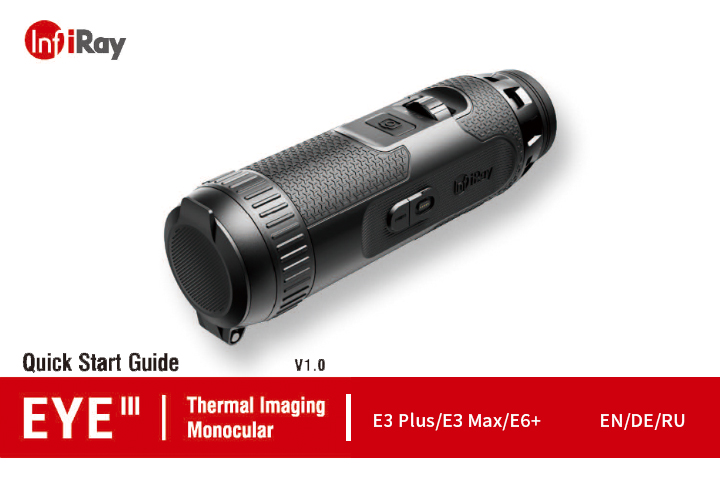

Eye III Quick Guide

Eye III Quick Guide

Manual-EYE III

Manual-EYE III
  • E3PLUS
  • E3MAX
  • E6+
ModelE3plus
Detector
Parameters
Resolution384 x 288
Pixel Size12um
NETD<25mk
Frame Rate50Hz
Optical
Parameters
Focal Length of Objective Lens25mm
FOV10.5° x 7.9°
Base Magnification3.5
Eye Relief20mm
Eye Relief Diameter5.5mm
Diopter Adjustment±5D
Detection Range1300
Other ParametersDisplay Screen TypeOLED
Battery Operating Time8h
Digital CompassSupported
WIFISupported
MICSupported
Product InterconnectionSupported
InterfaceTypeC & magneticinterface
Storage32G
Ingress Protection RatingIP67
Weight480g
DimensionΦ54 x 180mm


Model E3max
Detector
Parameters
Resolution384 x 288
Pixel Size12um
NETD<25mk
Frame Rate50Hz
Optical
Parameters
Focal Length of Objective Lens35mm
FOV7.5° x 5.7°
Base Magnification5
Eye Relief20mm
Eye Relief Diameter5.5mm
Diopter Adjustment±5D
Detection Range1800
Other  ParametersDisplay Screen TypeOLED
Battery Operating Time8h
Digital CompassSupported
WIFISupported
MICSupported
Product InterconnectionSupported
InterfaceType C & magnetic interface
Storage32G
Ingress Protection RatingIP67
Weight480g
DimensionΦ54 x 180mm


Model E6+
Detector
Parameters
Resolution640 x 512
Pixel Size12um
NETD<25mk
Frame Rate50Hz
Optical
Parameters
Focal Length of Objective Lens35mm
FOV12.5° x 10.0°
Visual Magnification3
Eye Relief20mm
Eye Relief Diameter5.5mm
Diopter Adjustment±5D
Detection Range1800
Other  ParametersDisplay Screen TypeOLED
Battery Operating Time8h
Digital CompassSupported
WIFISupported
MICSupported
Product InterconnectionSupported
InterfaceType C & magnetic interface
Storage32G
Ingress Protection RatingIP67
Weight480g
DimensionΦ54 x 180mm


  • Product Parameters Comparison
  • ModelE3plusE3maxE6+
    Detector
    Parameters
    Resolution384 x 288384 x 288640x512
    Pixel Size12um12um12um
    NETD<25mk<25mk<25mk
    Frame Rate50Hz50Hz50Hz
    Optical
    Parameters
    Focal Length of Objective Lens25mm35mm35mm
    FOV10.5° x 7.9°7.5° x 5.7°12.5°x10.0°
    Base Magnification3.553
    EyeRelief20mm20mm20mm
    Eye Relief Diameter5.5mm5.5mm5.5mm
    Diopter Adjustment±5D±5D±5D
    Detection Range130018001800
    Other ParametersDisplay Screen TypeOLEDOLEDOLED
    Battery Operating Time8h8h8h
    Digital CompassSupportedSupportedSupported
    WIFISupportedSupportedSupported
    MICSupportedSupportedSupported
    Product InterconnectionSupportedSupportedSupported
    InterfaceTypeC & magneticinterfaceTypeC & magneticinterfaceTypeC & magneticinterface
    Storage32G32G32G
    Ingress Protection RatingIP67IP67IP67
    Weight480g480g480g
    DimensionΦ54 x 180mmΦ54 x 180mmΦ54 x 180mm
