Thermal Imaging Scope EyeⅡ Series V1.0(E3Plus/E3Max/E6+/E6Pro)
Thermal Imaging Scope EyeⅡ Series V1.0(E3Plus/E3Max/E6+/E6Pro)

Thermal Imaging Scope EyeⅡ Series V1.0(E3Plus/E3Max/E6+/E6Pro)

Thermal Imaging Scope EyeⅡ Series V1.0(E3Plus/E3Max/E6+/E6Pro)

Wide display and multifunctional operations will enhance  and record the excellent moment of your outdoor activities. Big and Bigger.

Meet Eye Ⅱ Series V1.0


Bigger display and multifunctional operations enhance and record the excellent moment of your outdoor activities. Big and Bigger.

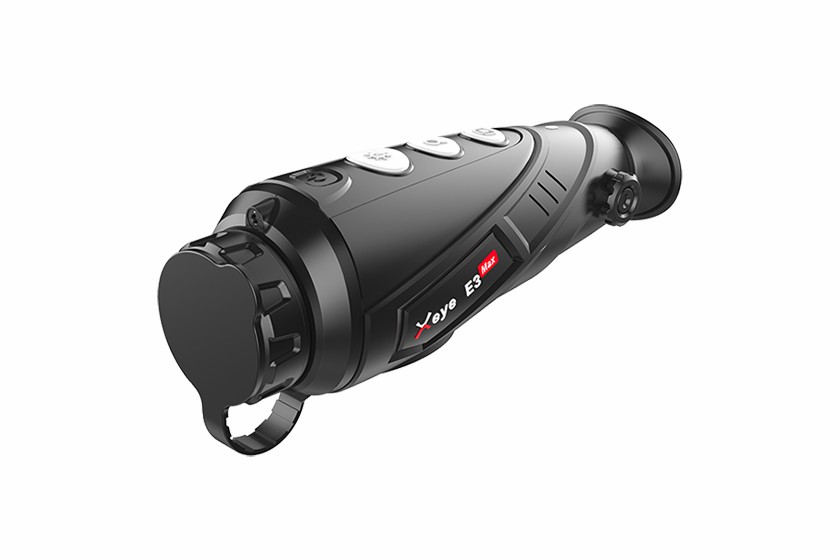

Pocket-Sized Thermal Vision Monocular

The InfiRay EYE Ⅱ series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE Ⅱ reveals your surroundings and helps you see people, objects and animals over one  thousand meters away. Simple to use, with still image and video recording, EYE Ⅱ is the perfect companion, whether in the back country or your own backyard.



High Image Quality

The EyeⅡ series are embedded with IRay independently developed high performance Vox detector which allows you to get high detailed thermal images, it will be much simpler to search targets in darkness.  There are two kinds of detector resolutions for options: 384*288 & 640*512. The EyeⅡ series has excellent performance in critical temperature range.


HD Micro Display

 1280×960 high resolution display that offers crisp image and vivid colors.


 High Resolution

Two kinds of detector resolutions are available for options: 384×288 & 640×512.


Standby Function

When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).


High Image Frequency

And the 50Hz refresh rate guarantees you to capture every moment that you are interested.


PIP Functions

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target while retaining the rest of the field of view visible.


5 Color Palettes

The Eye II series provides more than 5 color palettes for true colorized temperature mapping, including “white hot” “black hot” “red hot” “color” and “hot target highlight”. Switching between different color palettes is fast and easy.



Stadiametric Rangefinder

Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.


Hot Target Tracking

Track the hottest spot in the scene automatically and discover the target quickly.



Built-in Video Recorder and WiFi Connection

The monocular has 8 GB build-in memory to store the captured still images and video recording and WiFi module which allows 4 connections simultaneously.



Download

Manual-EYE II V1.0

Manual-EYE II V1.0
  • E3Plus
  • E3Max
  • E6+
  • E6Pro
Resolution, pixels384×288
Pixel Size, μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm25
Field of View14.9°×11.2°
Display1280×960 LCOS
Magnification, x1.75 -7.0
Digital Zoom, x2x/4x
Max. Battery Life, h4.5
(Power saving mode)
Amount of built-in memory, GB8
Dimension, mm181×65×64
Weight, g<450
Detection Range, m
(Targetsize:1.7m×0.5m, P(n)=99%)
916


Resolution, pixels384×288
Pixel Size, μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm35
Field of View10.7°×8°
Display1280×960 LCOS
Magnification, x2.45-9.8
Digital Zoom, x2x/4x
Max. Battery Life, h4.5
(Power saving mode)
Amount of built-in memory, GB8
Dimension, mm186×65×64
Weight, g<450
Detection Range, m
(Targetsize:1.7m×0.5m, P(n)=99%)
1283


Resolution, pixels640×512
Pixel Size, μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm35
Field of View17.7°×13.3°
Display1280×960 LCOS
Magnification, x1.5-6
Digital Zoom, x2x/4x
Max. Battery Life, h4
(Power saving mode)
Amount of built-in memory, GB8
Dimension, mm188×65×64
Weight, g<450
Detection Range, m
(Targetsize:1.7m×0.5m, P(n)=99%)
1283


Resolution, pixels640×512
Pixel Size, μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm50
Field of View12.4°×9.3°
Display1280×960 LCOS
Magnification, x2.1-8.4
Digital Zoom, x2x/4x
Max. Battery Life, h4
(Power saving mode)
Amount of built-in memory, GB8
Dimension, mm202×65×64
Weight, g<520
Detection Range, m
(Targetsize:1.7m×0.5m, P(n)=99%)
1833


  • Product Parameters Comparison
  • ModelE3PlusE3MaxE6+E6Pro
    Resolution, pixels384×288640×512
    Pixel Size, μm17
    NETD, mK≤40
    Frame Rate, Hz50
    Objective Lens, mm253550
    Field of View14.9°×11.2°10.7°×8°17.7°×13.3°12.4°×9.3°
    Display
    1280×960 LCOS
    Magnification, x1.75 -7.02.45-9.81.5-62.1-8.4
    Digital Zoom, x2/4
    Max. Battery Life, h

    (Power saving mode)

    4.54
    Amount of built-in memory, GB8
    Dimension, mm181×65×64186×65×64188×65×64202×65×64
    Weight, g<450<520
    Detection Range, m

     (Target size:1.7m×0.5m,P(n)=99%)

    91612831833
