Thermal Imaging Attachment Clip CH50W
Thermal Imaging Attachment Clip CH50W

Thermal Imaging Attachment Clip CH50W

Thermal Imaging Attachment Clip CH50W

Clip CH50W is a top-end front attachment designed as the infrared expansion device of the day scope. In addition to retaining the advantages of clear image quality and no need to re-zero, CH50W also adds Wifi, photo and video functions. CH50W is featuringwithprecise aiming, ultra-clear imaging and complete functions. Start your adventure with CH50W, turning your day riflescopes into powerful thermal imaging aiming systems.

Meet withCH50WSeries


Remarkable Image Quality


12um 640×512, NETD≤40mK

The unit adopts a 12μm 640×512 resolution thermal sensor with NETD ≤40mK and a 1024×768OLED display to bring an innovative improvement in thermal imaging quality which ensures perfect detailed recognition even in the hardest weather conditions.


Ultra-Clear Mode

The built-in ultra-clear mode brings a more detailed view and enhanced object recognition, makes the image more delicate.




Born for Professional Precision Shooting


No Rezeroing Required

With the special calibration of the CH50W, there is no need to re-zero after mounting to the day scope. Clamp and Shoot, that's it.


More Reasonable Day Sight Matching Options

CH50W supports gun-type selection corresponding to different UI interface switching, which is better compatible with day sights with different magnification ranges.

G1 and G2 are recommended magnification of the day sight for 1×-4×, while G3 and G4 for 5×-9×.




More user-friendly operation

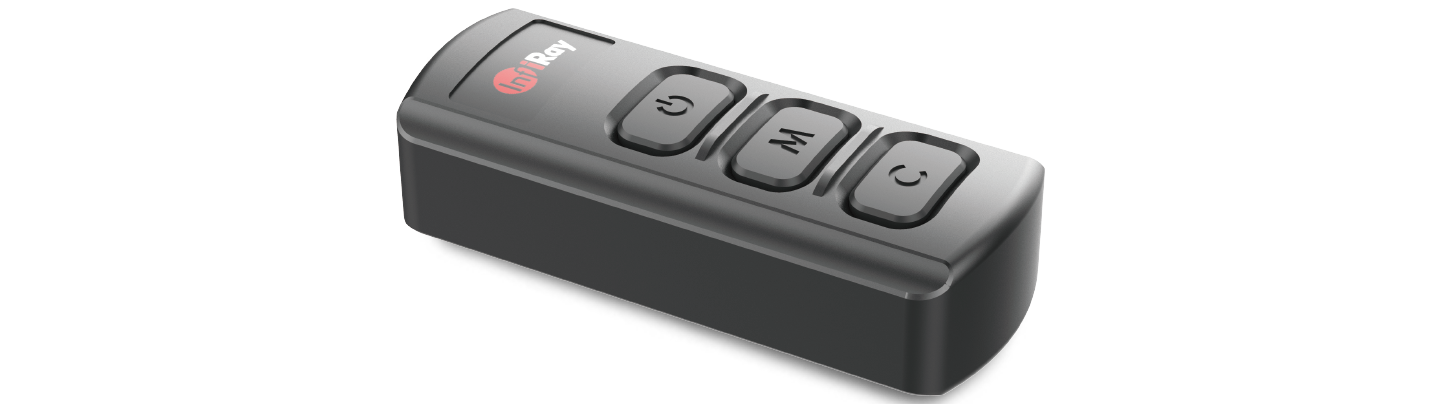

Wireless Remote Control

Clip CH50W features a simple connector arranged to make the hunt easier on set. The Bluetooth remote controls are very straightforward and almost identical to their predecessor which put the operation of the CH50W at your fingertips.




One Device for Two Purposes

With IAR-adapter mounts, the durable and compact CH50W can be easily attached to or detached from day optics in seconds to set up for handheld or mounted devices, so you can focus on shooting, not the imager.




Features designed for user needs


Useful WiFi Function

The CH50W supports Wifi, photo and video functions. The onboard 32GB internal memory handles recoil flawlessly and stores hours of video or thousands of photos.



Download

Manual-CH50W

Manual-CH50W

Brochure-CH50W

Brochure-CH50W
  • CH50W
Detector TypeVOx Uncooled
Resolution640×512
Pixel Size, μm12
NETD, mK≤40
Frame Rate, Hz50
Objective Lens, mm50
Field of View8.8°×7.0°
Recommended magnification of the day sight,×G1/G2: 1×-4× G3/G4:  5×-9×
E-zoom×1/×2/×4
Detection Range, m                   (Target size: 1.7m×0.5m, P(n)=99%)2597
Display1024×768 OLED
BatteryCR123×2/16650x2
Max. Battery Life, h4/7
USB InterfaceType-C
IP RatingIP66
Remote ControlBluetooth
Amount of built-in memory, GB32
Weight (without batteries) ,  g<590
Dimension, mm175×74×68
Adapter RingM52×0.75


  • Product Parameters Comparison
  • ModelCTP13CML25CL42CH50W
    Sensor256*192, 12um384*288, 17um384*288, 17um640*512, 12um
    NETD≤40mk
    Frame Rate25Hz50Hz
    Objective lens13mm25mm42mm50mm
    Field of view13.5x10.114.9x11.28.9x6.78.8x7.0
    Display1024*768 AMOLED
    WifiXY
    Photo/VideoXY
    Built-in memoryX32GB
    Wireless Remote controlXY
    Dimension77*52*46mm125*70*48mm154*61*58mm175*68*74mm
    Weight130g290g420g590g
    Detection Range675m916m1540m2597m
