The InfiRay Mini Series is the smallest fully multi-functional 12 micron thermal imaging monocular on the market. It can be used as a handheld monocular or helmet mounted monocular. The Mini Series features Bluetooth, picture-in-picture, and compatibility with rechargeable 16650 batteries as well as external power supply.


Meet Mini Series

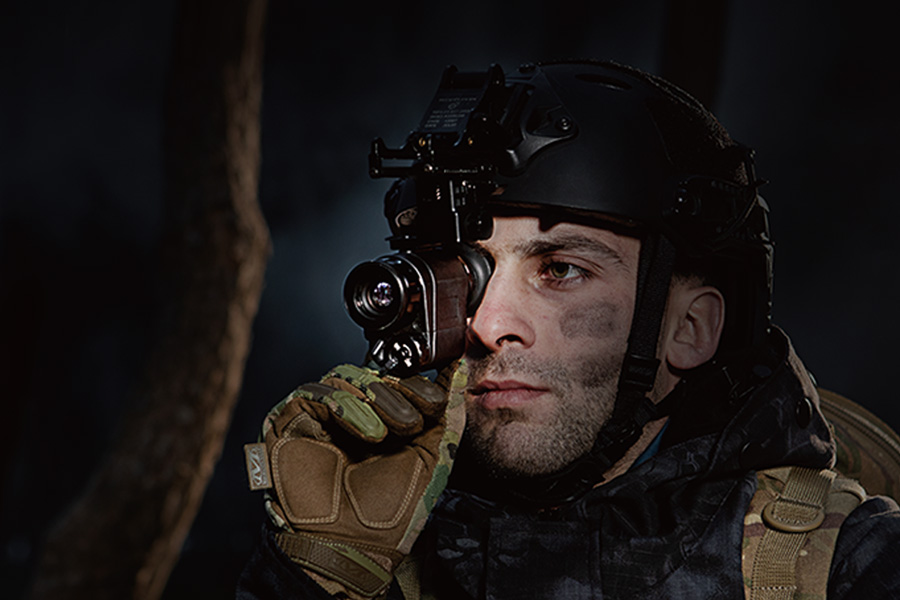

The Mini Series Thermal Helmet Mountable Monocular is one of the smallest, fully multi-functional thermal imaging monocular currently on the market. Its remarkably compact size ensures that it can be concealed in a shirt pocket or mounted to a helmet with its mini rail feature.




High Image Quality

The advanced image processing of the IRay detector, high performance electronics and optimized infrared optics create excellent image clarity and provide better detection and classification, day or night.


12um Thermal Imaging Sensor

High performance 12μm & 17μm pixel Pitch detectors are embedded in the compact body.


HD Micro Display

1280×960 high resolution internal display offers crisp image and vivid colors.


High Image Frequency

The 50Hz refresh rate guarantee you to capture every moment that you are interested.


Friendly Operation

All functions of mini series can be controlled by one key, which makes the operations easily and quickly.


Flexible Mounting Options

For hands-free operation, Mini has multiple mounting points designed to allow for a wide variety of dovetail helmet mounts, and to install additional equipment. What is more, the image flipped automatically ensures the right image by different mounts.

The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.




Power Supply Options

Using the included battery extender the Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours.




Stadiametric Rangefinder

Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.


PIP Function

Picture-in-Pictureimproves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to zoom in on a target while retaining the rest of the field of view visible.




Inclinometer and Digital Compass

Mini series has Great situational awareness with integrated object orientation.



Wireless Remote Control

Wireless remote controller makes the Mini be more convenient when being helmet mounted.





Download

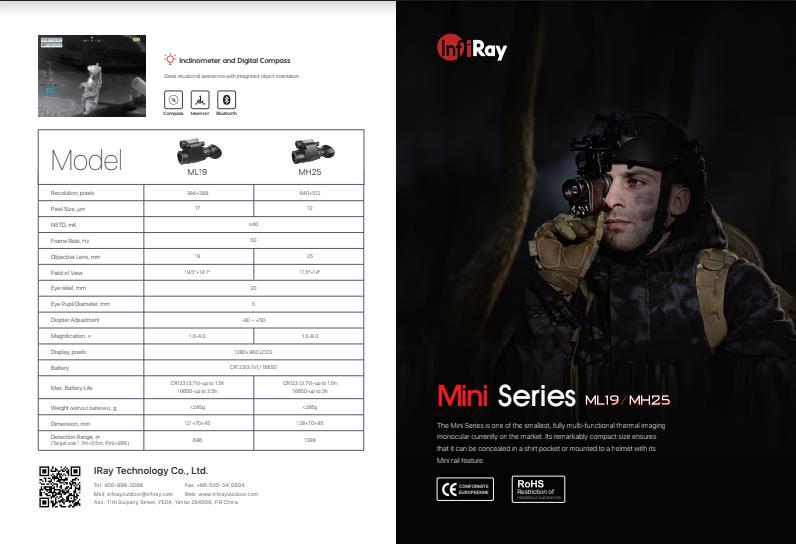

Brochure-Mini Series

Brochure-Mini Series

Manual-Mini Series

Manual-Mini Series
  • ML19
  • MH25
Resolution384x288
Pixel Sze17um
NETD≤40mk
Frame Rate50Hz
Objective Lens19mm
Field of View19.5°×14.7°
Eye relief20mm
Eye Pupil Diameter5mm
Diopter adjustment-4D~+5D
Magnification1.0-4.0x
Display1280×960
BatteryCR123/16340(Recommend)/16650
Max. Battery LifeCR123-2.5hr
16340-up to 4hr
16650-up to 6hr
Weight<225g
Dimension121×70×45mm
Detection Range, m
(Target size:1.7m×0.5m, P(n)=99%)
696m


Resolution640x512
Pixel Sze17um
NETD≤40mk
Frame Rate50Hz
Objective Lens25mm
Field of View17.5°×14°
Eye relief20mm
Eye Pupil Diameter5mm
Diopter adjustment-4D~+5D
Magnification1.0-8.0x
Display1280×960
BatteryCR123/16340(Recommend)/16650
Max. Battery LifeCR123-2hr
16340-up to 3hr
16650-up to 4.5hr
Weight<245g
Dimension128×70×45mm
Detection Range, m
(Target size:1.7m×0.5m, P(n)=99%)
1298m


  • Product Parameters Comparison
  • ModelML19MH25
    Resolution, pixels384x288640x512
    Pixel Sze,um17um12um
    NETD,mK≤40
    Frame Rate, Hz50
    Objective Lens19mm25mm
    Field of View, °19.5°×14.7°17.5°×14°
    Eye relief20mm
    Eye Pupil Diameter5mm
    Diopter adjustment-4D~+5D
    Magnification1.0-4.0x1.0-8.0x
    Display Resolution1280×960
    BatteryCR123/16340(Recommend)/16650
    Max. Battery LifeCR123-2.5hr

    16340-up to 4hr
    16650-up to 6hr

    CR123-2hr

    16340-up to 3hr
    16650-up to 4.5hr

    Weight, g<225g<245g
    Dimension121×70×45mm128×70×45mm
    Detection Range

    (Target size:1.7m×0.5m, P(n)=99%)

    696m1298m
