Thermal Imaging Riflescope Holo Series (HP06)
Thermal Imaging Riflescope Holo Series (HP06)

Thermal Imaging Riflescope Holo Series (HP06)

Thermal Imaging Riflescope Holo Series (HP06)

Holo is a direct view multifunctional thermal reflex sight embedded with the IRay’s latest  generation thermal imaging detector . The 1.63” OLED display brings excellent visual  experience of quick target acquisition without visual difference. It is an ideal thermal aiming camera with compact size, easy operation and  multiple installation interfaces (side picatinny available).

Meet Holo Series

Holo is a direct view multifunctional thermal reflex sight embedded with the InfiRay's latest generation thermal imaging detector . The 1.63”OLED display brings excellent visual experience of quick target acquisition without visual difference. It can be the ideal option for those users who want thermal aiming camera with compact size, easy operation and multiple installation interfaces (side picatinny available).


12μm Ceramic Detector


Holo HP13 is equiped with new ceramic encapsulated detector, which are lighter, lower power consumption and last longer.



High Image Quality With 1.63” AMOLED Display

The high performance IRay VOx detector and the advanced image processing create brilliant and sharp images.And Holo series is designed for directly aiming with a 1.63” AMOLED display, that user can observe and aim fast and accurately using both eyes, more comfortable and clearer without visual difference.




Short Start-Up Time, Low Power Consumption

3 seconds start-up time helps to save energy and can be rapidly activated when the right time comes. Low power consumption guarantees you don’t have to worry about the power supply. Dual-Purpose Holo Thermal Scope is a sharp and distinct thermal monocular which looks pretty much similar to an ordinary handheld video camera.

Moreover, when fitted on the custom handle, the Holo handle can be powered by a single 18650 battery. For example,the 20000mAh battery capacity can be used to supply a minimum of 8h to the Holo.



Compact Size and Lightweight, IP67 Fully Waterproof

With reasonable layout, compact structure, user-friendly controls, ergonomic design and light weight ensure the Holo Series more comfortable and convenient for outdoor usage.

IP67 waterproof-rated protection ensures the Holo Series performs perfectly in humid environment, heavy rain, snowfall and submersion in 1 meter of water for up to 30 minutes.


Multiple Mounts, Sight or Monocular, whichever you choose

For convenient operation, Holo series provides a quick-disassembled rail clamp for installation on hunting weapons that equipped with Picatinny rails.

Beyond that, there is a short Picatinny rail on the side for variety widely usage, so as to install additional equipment.




Download

Brochure-HP13

Brochure-HP13

Brochure-HP06/HL13

Brochure-HP06/HL13

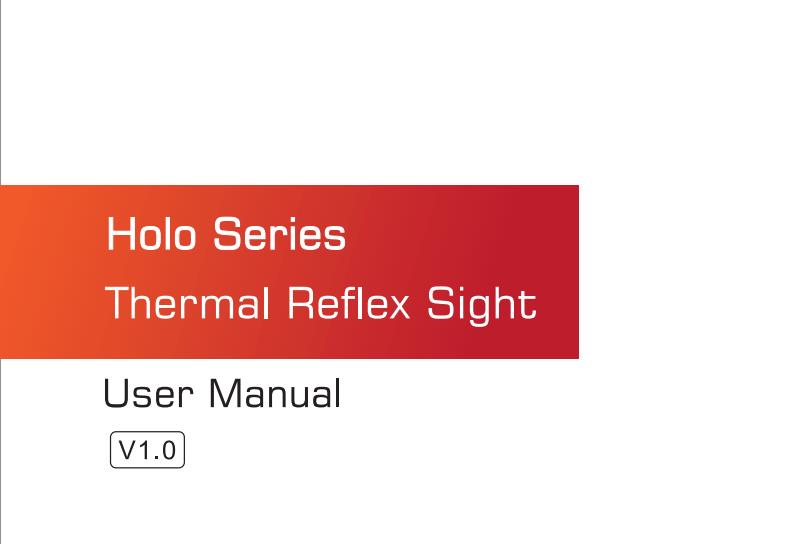

Manual-Holo Series

Manual-Holo Series
  • HP06
ModelHP06
Resolution, pixels240x210
Pixel   Size, um17
NETD, mk≤40
Frame Rate, Hz25
Objective Lens, mm6.8
Field of View33.4°×29.4°
Display1.63” AMOLED
E-zoom×1\×2\×3\×4
Laser, nm650
ReticleMultiple Patternsand Color Options
BatteryCR123A
Max. Battery Life, h3.5
Handle battery18650
Max. Battery Life, h8
IP RatingIP67
Weight(without   battery), g<250
Dimension, mm58.5×80.5×74.5
MountPicatinny
Detection Range, m
(Target size:1.7m×0.5m, P(n)=99%)
249


  • Product Parameters Comparison
  • ModelHP06
    Resolution, pixels240x210
    Pixel Size, um17
    NETD, mk≤40
    Frame Rate, Hz25
    Objective Lens, mm6.8
    Field of View33.4°×29.4°
    Display1.63" AMOLED
    E-zoom×1\×2\×3\×4
    Laser, nm650
    ReticleMultiple Patternsand Color Options
    BatteryCR123A
    Max. Battery Life, h3.5
    IP RatingIP67
    Weight(without   battery), g<250
    Dimension, mm58.5×80.5×74.5
    MountPicatinny
    Detection Range,   m (Target size:1.7m×0.5m, P(n)=99%)249



Request A Free Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products

InfiRay Hybrid offers the versatility to hunt using either a thermal riflescope or clip-on. Hybrid is equipped with optional external LRF and ballistic calculation to make accuracy up to ±1MOA. It adopts a 2K level 2560×1920 full-color OLED display, which provides excellent display performance while its eyepieces are designed with user comfort and safety in mind. Hybrid aims to bring you a hunt like never before.

Rico-RS75 ushers in a whole new era of high-definition thermal with its most powerful thermal imaging detector. RS75 is the first to adopt a thermal imaging detector with a resolution up to 1280*1024. Every RICO with the 1280 detector will be transformed into a completely different class of product. Altogether with its 2560*2560, 1.03-inch AMOLED display, and optimized optical opponent, RS75 is designed to be the dream scope for night hunters.

Holo HL25 is a large-screen direct-vision thermal imaging scope. You can use it to capture or aim at targets with your eyes. Holo HL25 makes upgrades and improvements on the basis of the first generation, it can be used in hunting, searching, aiming, high-end war game, family defense, and other scenarios.

The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design and built-in laser rangerfinder makes the Finder the best choice for outdoor investigation.

The InfiRay Mini Series is the smallest fully multi-functional 12 micron thermal imaging monocular on the market. It can be used as a handheld monocular or helmet mounted monocular. The Mini Series features Bluetooth, picture-in-picture, and compatibility with rechargeable 16650 batteries as well as external power supply.

Wide display and multifunctional operations will enhance &nbsp;and record the excellent moment of your outdoor activities. Big and Bigger.

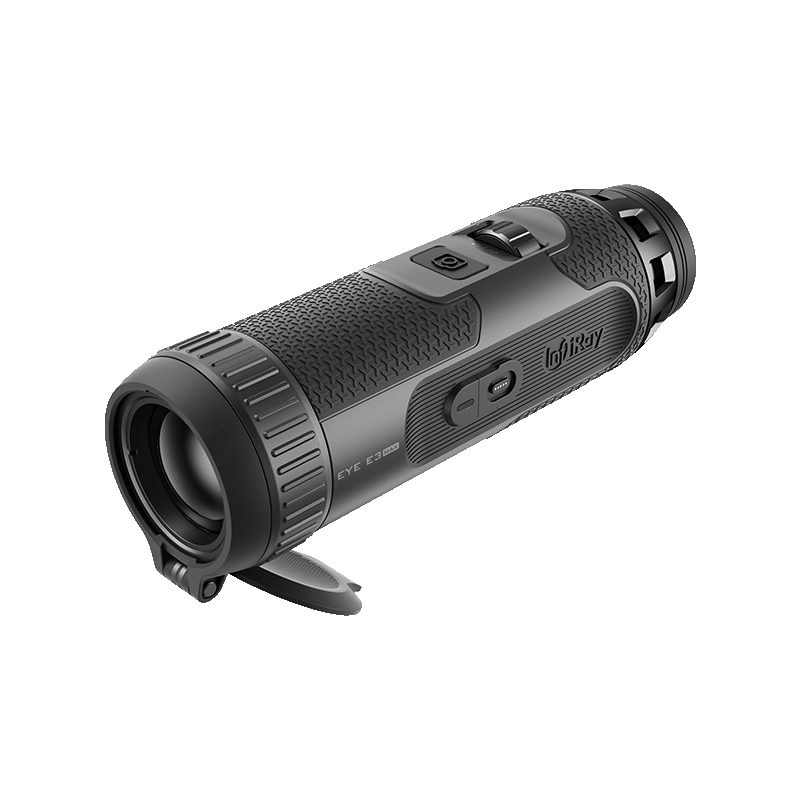

The compact &amp; elegant design and easy operational functions &nbsp;make the Eye series thermal imaging monocular the ideal &nbsp;target observation tool in darkness.
