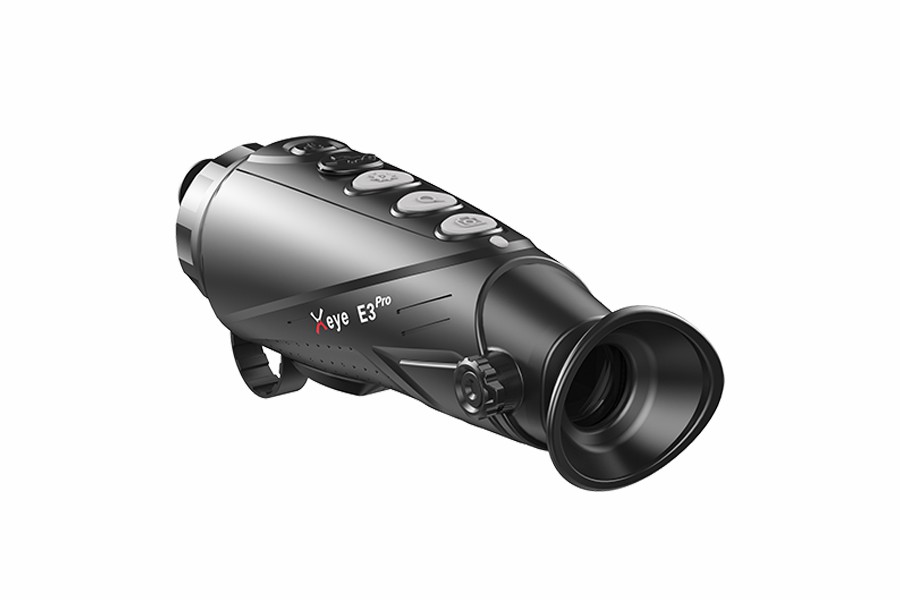

Thermal Imaging Scope Eye Series V1.0(E2m/E3m/E3+/E3Pro)
Thermal Imaging Scope Eye Series V1.0(E2m/E3m/E3+/E3Pro)

Thermal Imaging Scope Eye Series V1.0(E2m/E3m/E3+/E3Pro)

Thermal Imaging Scope Eye Series V1.0(E2m/E3m/E3+/E3Pro)

The compact & elegant design and easy operational functions make the Eye series thermal imaging monocular the ideal target observation tool in darkness.

Meet Eye Series V1.0


The compact & elegant design and easy operational functions make the Eye series thermal imaging monocular the idealvision enhancement tool in darkness.



High Image Quality

The Eye series are is embedded with IRay independently developed high performance VOx detector which allows you to get high detailed thermal images, so as to make it simpler to search targets in darkness. Comprised of advanced software algorithms EYE is designed to increase imaging clarity and overall image detail which results in a sharper, more detailed field of view and enhanced object identifcation capabilities.



High Frame Rate

The 50Hz frame rate guarantees you to capture every moment that you want to catch. Smooth, fluent and crystal clear views offers excellent observation for all your outdoor adventures.


Pocket-Sized Thermal Vision Monocular

The InfiRay EYE series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE reveals your surroundings and helps you see people, objects and animals over hundreds meters away. Simple to use, with still image and video recording, EYE is the perfect companion, whether in the back country or your own backyard.


17um Thermal Imaging Sensor

High performance 17μm pixel pitch detectors are embedded in the compact body.


Friendly Electrical Interface

The EYE is designed with ease-of-operation in mind. The monocular can be connected to specified APP via USB cable which allows user to watch the real-time video, take picture and record video on mobile devices based on Android and iOS such as smartphone or tablet.Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.


Standby Function

When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).




Compact Size and Lightweight

Compact size and lightweight becomes important in outdoor using, which ensure the highest level of comfort and usability.


5 Color Palettes

The Eye series provides more than 5 color palettes for true colorized temperature mapping, including “white hot”,“black hot”,“red hot”,“color” and “hot target highlight”. Switching between different color palettes is fast and easy.


Long Detection Range

Powerful objective lens in combination with professional grade thermal imaging sensor with NETD 50 mK provides exceptional detection capabilities. An average human-size target can be detected at a 1300m distance in complete darkness.




Built-in Video Recorder and WiFi Connection

Internal storage of 8 GB provides many hours of recorded video capability, or approximately 20,000 images of photo storage. Wi-Fi mode allows for up to 4 connections simultaneously.



Download

Manual-EYE V1.0

Manual-EYE V1.0
  • E2m
  • E3m
  • E3+
  • E3 Pro
Resolution, pixels240×180
Pixel Size,μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm13
Field of View17.8°×13.4°
Display720×540 LCOS
OpticalMagnification, x0.9-1.8
DigitalZoom, x2
Max. Battery Life, h7
Wi-Fi×
Photo & Video×
Laser×
LEDIndicator
Dimension, mm160×62×62
Weight, g<370

Detection Range, m

(Targetsize:1.7m×0.5m, P(n)=99%)

476


Resolution, pixels384×288
Pixel Size, μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm19
Field of View19.5°×14.7°
Display720×540 LCOS
Optical Magnification, x0.85-1.7
Digital Zoom, x2
Max. Battery Life, h7
Wi-Fi×
Photo & Video×
Laser×
LED Indicator
Dimension, mm160×62×62
Weight, g<370
Detection Range, m
(Targetsize:1.7m×0.5m, P(n)=99%)
697


Resolution, pixels384×288
Pixel Size, μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm19
Field of View19.5°×14.7°
Display720×540 LCOS
Optical Magnification, x0.85-3.4
Digital Zoom, x2x/4x
Max. Battery Life, h7(Power saving mode)
Wi-Fi
Photo & Video
Laser
LED Indicator
Dimension, mm160×62×62
Weight, g<370
Detection Range, m
(Targetsize:1.7m×0.5m, P(n)=99%)
697


Resolution, pixels384×288
Pixel Size, μm17
NETD, mk≤40
Frame Rate, Hz50
Objective Lens, mm35
Field of View10.7°×8.0°
Display720×540 LCOS
Optical Magnification, x1.6-6.4
Digital Zoom, x2x/4x
Max. Battery Life, h7(Power saving mode)
Wi-Fi
Photo & Video
Laser×
LED Indicator×
Dimension, mm185×62×62
Weight, g<420
Detection Range, m
(Targetsize:1.7m×0.5m, P(n)=99%)
1283


  • Product Parameters Comparison
  • ModelE2mE3mE3+E3 pro
    Resolution, pixels240×180384×288
    Pixel Size,μm17
    NETD, mk≤40
    Frame Rate, Hz50
    Objective Lens, mm131935
    Field of View17.8°×13.4°19.5°×14.7°10.7°×8.0°
    Display720×540 LCOS
    OpticalMagnification, x0.9-1.80.85-1.70.85-3.41.6-6.4
    DigitalZoom, x22x/4x
    Max. Battery Life, h77(Power saving mode)
    Wi-Fi××
    Photo & Video××
    Laser×××
    LEDIndicator×
    Dimension, mm160×62×62185×62×62
    Weight, g<370<420
    Detection Range, m (Targetsize:1.7m×0.5m, P(n)=99%)4766971283
