Thermal Imaging Monocular AFFO Series
Thermal Imaging Monocular AFFO Series

Thermal Imaging Monocular AFFO Series

Thermal Imaging Monocular AFFO Series

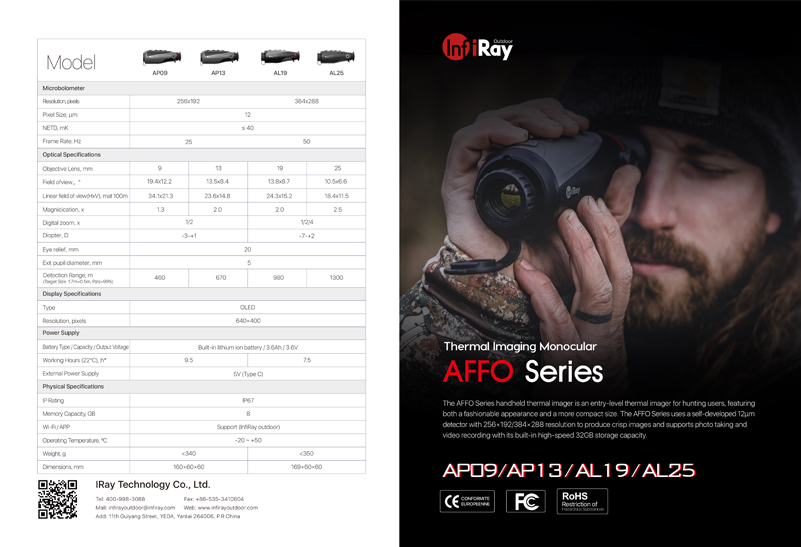

The AFFO Series handheld thermal imaging monocular is an entry-level thermal monocular for users, featuring both a fashionable appearance and a more compact size. The AFFO Series uses a self-developed 12μm detector to produce crisp images and supports photo-taking and video recording with its built-in high-speed 32GB storage capacity.


Meet withAFFOSeries


High-performance Detector


The AFFO Series adopts a 12um uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp HD images.



New Appearance Design & Compact Size


The rounded curve-design body fits the human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with you along your adventure.




Long Battery Life


Low-power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours of operational battery life.




Additional Practical Functions


The AFFO Series features additional practical functions including stadia metric rangefinding and PIP. Its adapter is equipped with multiple travel charging headers to meet the needs of users in different countries and regions.


  • Stadiametric RangefindingFacilitate confirmation of prey distance and provide position reference for hunting.


  • PIP: The screen of the cursor position is magnified twice to highlight the target and assist in observing the target details.






More image modes to cope with different scenarios


Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot, and color palette. Wider detection and operating temperature range with hotspot tracking function.




Upgraded Protection


  • Upgraded lens protectionDurable rigid plastic lens cap with higher hardness and impact resistance;

  • Upgraded waterproofingExternal screen is used on rainy days for outdoor scenarios to prevent water from flowing into the interface.


Download

AFFO Series Manual Book V5.0-EN

AFFO Series Manual Book V5.0-EN

AFFO Series Quick Start Guide V5.0

AFFO Series Quick Start Guide V5.0
  • AP09
  • AP13
  • AL19
  • AL25
MODELAP09
TypeUncooled Vox
Resolution256 × 192
Pixel Pitch, μm12
NETD, mK≤40
Refresh Rate, Hz25
Objective Lens, mm9
Field of View, ° 19.4 × 12.2
Magnification, x1.3
Digital Zoom, x1 / 2
Diopter, D-7 ~ +2
Detection Range, m

(TargetSize:1.7m×0.5m,P(n)

=99%)

460
Display TypeAMOLED
Display Resolution640 × 400
Battery Type / Capacity /
Output Voltage
Built-in Li-ion Battery /3.6Ah / 3.6V
Working Hours(22°C), h*9.5
External Power Supply5V(TypeC)
Ingress Protection RatingIP67
Memory Capacity, GB8
Wi-Fi / APPSupport(InfiRayoutdoor)
Operating Temperature, ºC-20 ~ +50
Weight, g<340
Dimensions,mm160 × 60 × 60


MODELAP13
TypeUncooled Vox
Resolution256 × 192
Pixel Pitch, μm12
NETD, mK≤40
Refresh Rate, Hz25
Objective Lens, mm13
Field of View, ° 13.5 × 8.4
Magnification, x2.0
Digital Zoom, x1 / 2
Diopter, D-7 ~ +2
Detection Range, m

(TargetSize:1.7m×0.5m,P(n)

=99%)

670
Display TypeAMOLED
Display Resolution640 × 400
Battery Type / Capacity /
Output Voltage
Built-in Li-ion Battery / 3.6Ah / 3.6V
Working Hours(22°C), h*9.5
External Power Supply5V(TypeC)
Ingress Protection RatingIP67
Memory Capacity, GB8
Wi-Fi / APPSupport(InfiRayoutdoor)
Operating Temperature, ºC-20 ~ +50
Weight, g<340
Dimensions,mm160 × 60 × 60


MODELAL19
TypeUncooled Vox
Resolution384 × 288
Pixel Pitch, μm12
NETD, mK≤40
Refresh Rate, Hz50
Objective Lens, mm19
Field of View, ° 13.8 × 8.7
Magnification, x2.0
Digital Zoom, x1 / 2 / 4
Diopter, D-7 ~ +2
Detection Range, m

(TargetSize:1.7m×0.5m,P(n)

=99%)

980
Display TypeAMOLED
Display Resolution640 × 400
Battery Type / Capacity /
Output Voltage
Built-in Li-ion Battery / 3.6Ah / 3.6V
Working Hours(22°C), h*7.5
External Power Supply5V(TypeC)
Ingress Protection RatingIP67
Memory Capacity, GB8
Wi-Fi / APPSupport(InfiRayoutdoor)
Operating Temperature, ºC-20 ~ +50
Weight, g<350
Dimensions,mm169 × 60 × 60


MODELAL25
TypeUncooled Vox
Resolution384 × 288
Pixel Pitch, μm12
NETD, mK≤40
Refresh Rate, Hz50
Objective Lens, mm25
Field of View, ° 10.5 × 6.6
Magnification, x2.5
Digital Zoom, x1 / 2 / 4
Diopter, D-7 ~ +2
Detection Range, m

(TargetSize:1.7m×0.5m,P(n)

=99%)

1300
Display TypeAMOLED
Display Resolution640 × 400
Battery Type / Capacity /
Output Voltage
Built-in Li-ion Battery / 3.6Ah / 3.6V
Working Hours(22°C), h*7.5
External Power Supply5V(TypeC)
Ingress Protection RatingIP67
Memory Capacity, GB8
Wi-Fi / APPSupport(InfiRayoutdoor)
Operating Temperature, ºC-20 ~ +50
Weight, g<350
Dimensions,mm169 × 60 × 60


  • Product Parameters Comparison
  • MODELAP13AL19AL25
    TypeUncooledVox
    Resolution256  × 192384   × 288
    Pixel Pitch,μm12
    NETD,mK≤40
    Frame Rate,Hz2550
    Objective Lens,mm131925
    Field of View, ° 13.5  × 8.413.8 × 8.710.5  × 6.6
    Magnification,x2.02.5
    Digital Zoom,x1/21 / 2   / 4
    Diopter, D     -7~ +2

    Detection Range,m (TargetSize:1.7m×0.5m,P(n)

    =99%)

    6759801300
    Display TypeAMOLED
    Display Resolution720 × 540640 × 400
    Battery Type / Capacity / Output VoltageBuilt-in   li-ion battery / 3.6Ah / 3.6V
    Working Hours(22°C),h*9.57.5
    External Power Supply5V   (TypeC)
    Ingress Protection RatingIP67
    Memory Capacity,GB32
    Wi-Fi / APPSupport(InfiRayoutdoor)
    Operating Temperature,ºC-20~   + 50
    Weight,g<340<350
    Dimensions,mm160 ×  60 × 60169 ×  60 × 60
