Thermal Imaging Riflescope Tube TH35 Series (BOLT In The US)

Thermal Imaging Riflescope Tube TH35 Series (BOLT In The US)

The Tube series TH35 thermal imaging rifle scope inherits the classic day scope streamlined exterior with superior performance. On this basis, TH35 makes the pioneering and innovative use of Round display to achieve the first time in the industry. The 1.39'round OLED display expands the field of observation, improves the image clarity and contrast, and significantly improves the observation comfort.


  • Product Details

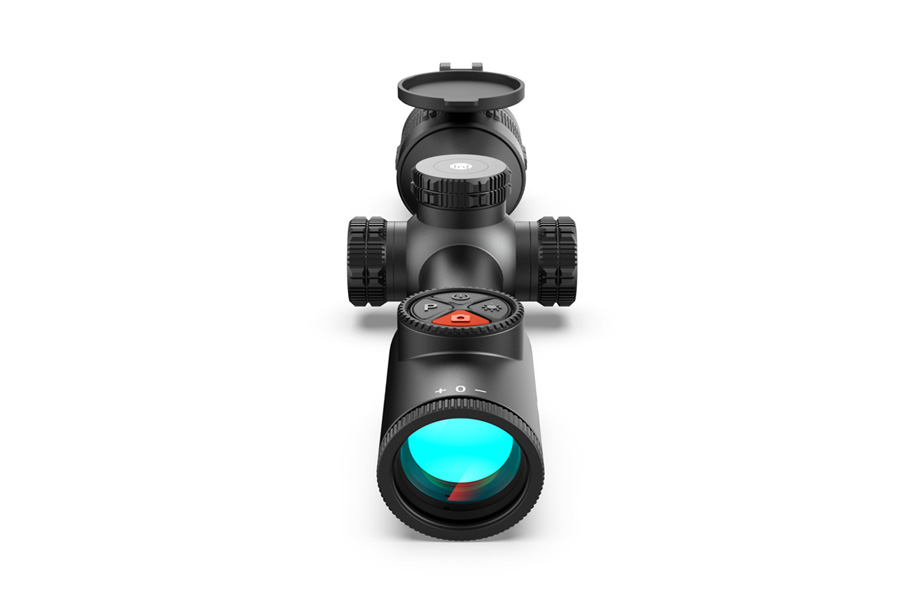

Meet Tube TH35 Series (Bolt in the US)

Following the classic Tube appearance design by looking like a day riflescope.  TH35 expresses an advanced and brilliant creation out of Tube series by using the 1.39’ round screen. The 1.39’ round screen will bring a whole different sense of experience by offering a much bigger view. For whom value tradition and pursue technology improvement , TH35 is a go- to choice .


1.39’Round Screen

The application of 1.39’round screen is groundbreaking and Innovative in the thermal scope industry. The grand view brought by 1.39’round screen can present a more comfortable and pleasant observing experience.



Infinite Zooming

While TH35 can achieve the magnification of 3.0-9.0 times, it can perform infinite zooming which means you can adjust the magnification to the times you like during 3.0-9.0. Fit your need more by serving the details in a way you want it to.



12um Pixel Pitch

Featuring the self-researched, high-performance 12um detector, it provides high quality and detailed images.



Ultraclear Mode

 When Ultraclear mode is on, bad weather condition effect is off. With Untraclear mode, TH35 can still provide a clear and detailed image even in bad weather conditions such as heavy fog and rain. Bad weather can’t slow you down .



Classic inheritance  Go-to-choice for Traditional Ones

Full aluminum housing guarantees the reliability of TH35, applicable for 30 mm diameter pipe, the appearance allows TH35 to be installed on standard 30 mm scope rings, with simple operation, high stability.



High Shock Resistance

The high shock resistance of TH35 is up to 1000G, it ensures the reliability of TH35.



Sufficient Operation Time

Built-in batteries work for 8 hours, and with an additional 18500 battery for back up, working time of TH35 will be 11.5 hours




Upgrading 32G Storage, No Miss of Precious Moments

The storage space updated to 32G, more worth-recording moments can be captured and preserved.



5 Practical Color Palettes

TH35 prepared 5 different color palettes which are white hot、black hot、red hot、color、hot target highlight you can choose to suit different situations. The hot target highlight mode is particular owned by InfiRay to help you highlight the target and blacking the rest, target will be more obvious while the background turns into black.



Diopter Adjustment Free

In order to aviod inconvenient diopter adjust operations for users, InfiRay has innovatively developed one feature on TH35-- no need to adjust diopter. The clarity of image is demonstrated in the range of -4D without diopter adjustment, as well as expanded to +3D through extra accessories.





Your Wise Choose With TH35



Model

TH 35

Detector Resolution 464x464
Pixel Pitch, um
12
NETD, mK
≤40
Frame Rate, Hz
50
Objective Lens, mm
35
Field of View
8.8x8.8
Magnification, x
3.0-9.0
Eye Relief, mm
50
DetectionRange(target size:1.7mx0.5m,p(n)=99%)
1816
Display
1.39" OLED
Battery
Built-in 2 18650 battery packs Replaceable 18500 battery
Max. Battery Life, h
11.5
Weight (without batteries-18500), g
<850
Dimension, mm
375x85x75
Interface
Type-C
Storage, G
32
