Thermal Imaging Attachment-Mate Series
Thermal Imaging Attachment-Mate Series

Thermal Imaging Attachment-Mate Series

Thermal Imaging Attachment-Mate Series

MATE creates a spot where precision meets portability. The magnesium alloy housing reduces the weight by 50% and improves the precision. MATE supports practical functions, including removable buttons, LRF, and monocular extension. It is the ideal mate for users who want a compact size and great value.

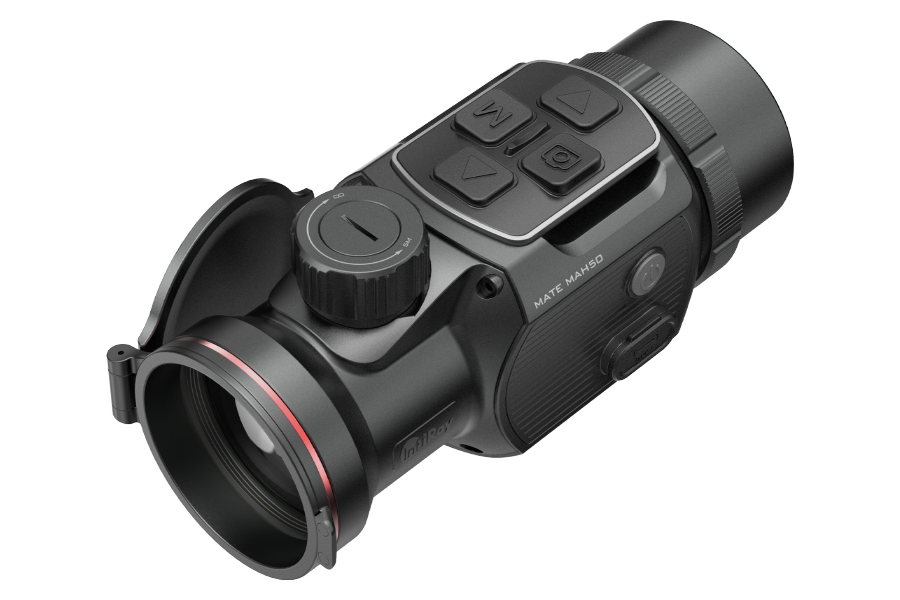

Meet Mate Series


MATE creates a spot where precision meets portability. The magnesium alloy housing reduces the weight by 50% and improves the precision. MATE supports practical functions, including removable buttons, LRF, and monocular extension. It is the ideal mate for users who want a compact size and great value.


Ultra-precision

MAH50/MAL38 can meet the high-precision requirement of "POI=1MOA" even by matching it with high-caliber rifles.

Lightweight & Compact Size

The weights are over 20% lighter than other similar products. It is also more compact than our previous clip-on.


Powerful Detector

MAH50 features a high-performance 640*512, 12μm detector with NETD less than 25mk. MAL38/ MAL25 provides cost-effective choices without major compromises in image quality.


Distortion-free

A high-quality optical imaging system offers a distortion-free image even when used with a 10 times daytime scope.


Sense-based Algorithms

The algorithms improve image quality by setting suitable preset parameters based on different environments, forests, plains, and citys.


Removable Buttons

The buttons can be moved and installed in any position on your rifle. This allows hunters to control the device easily even when their focus is on the target. The remote control is supported by an ultra-low power consumption solution and can attach magnetically for automatic charging.


Power Bank in Box

Mate Series add a power bank as a complementary accessory. It can prolong the battery life for approximately another 7 hours.


LRF Extension

LRF can be equipped as an optional accessory. In addition to facilitating accuracy, the LRF extension can work as a power bank to prolong the 4-hour battery life for MATE.


Monocular Extension

MAH50 will function as a thermal imaging monocular when used with the IOM accessory. The IOM can also be used as an optic scope independently.




Download

Quick start guide-mate series

Quick start guide-mate series
  • MAL25
  • MAL38
  • MAH50
ModelMAL25
Detector Parameters
Resolution, pixels384 × 288
Pixel size, um12
NETD, mk≤ 30
Frame rate, Hz50
Optics Parameters
Objective lens, mm25
Field of view (H x V), degrees / m @ 100 m10.6 × 7.9 / 18.4 × 13.8
Recommended magnification of the day scope, xG1/G2/G3/G4:1 - 5
E-zoomAttachment mode: ×1
Monocular mode: ×1/×2/×4
Detection range, m1298
(Target size: 1.7m×0.5m, P(n)=99%)
Display Parameters
TypeOLED
Resolution, pixels1024 × 768
Electrical Parameters
BatteryBuilt-in battery + Infiray battery Pack
Max. battery life, h5 + 7.5
USB InterfaceType-C
Physic Parameters
Body MaterialMagnesiumAlloy
IP RatingIP67
Remote controlSupport
Built-in memory, GB32
Aim point, MOA1.5
Weight, g460
Dimension, mm132 × 62 × 68
Adapter RingM52×0.75


ModelMAL38
Detector Parameters
Resolution, pixels384 × 288
Pixel size, um12
NETD, mk≤ 30
Frame rate, Hz50
Optics Parameters
Objective lens, mm38
Field of view (H x V), degrees / m @ 100 m7.0 × 5.3 / 12.3 × 9.2
Recommended magnification of the day scope, xG1/G2: 1 - 5
G3/G4: 6 - 8
E-zoomAttachment mode: ×1
Monocular mode: ×1/×2/×4
Detection range, m1948
(Target size: 1.7m×0.5m, P(n)=99%)
Display Parameters
TypeOLED
Resolution, pixels1024 × 768
Electrical Parameters
BatteryBuilt-in battery + Infiray battery Pack
Max. battery life, h5 + 7.5
USB InterfaceType-C
Physic Parameters
Body MaterialMagnesium Alloy
IP RatingIP67
Remote controlSupport
Built-in memory, GB32
Aim point, MOA1
Weight, g500
Dimension, mm138 × 62 × 71
Adapter RingM52×0.75


ModelMAH50
Detector Parameters
Resolution, pixels640 × 512
Pixel size, um12
NETD, mk≤ 25
Frame rate, Hz50
Optics Parameters
Objective lens, mm50
Field of view (H x V), degrees / m @ 100 m8.8 × 7.0 / 15.4 × 12.3
Recommended magnification of the day scope, xG1/G2: 1 - 5
G3/G4: 6 - 10
E-zoomAttachment mode: ×1
Monocular mode: ×1/×2/×4
Detection range, m2597
(Target size: 1.7m×0.5m, P(n)=99%)
Display Parameters
TypeOLED
Resolution, pixels1024 × 768
Electrical Parameters
BatteryBuilt-in battery + Infiray battery Pack
Max. battery life, h4 + 7
USB InterfaceType-C
Physic Parameters
Body MaterialMagnesium Alloy
IP RatingIP67
Remote controlSupport
Built-in memory, GB32
Aim point, MOA1
Weight, g530
Dimension, mm146 × 62 × 73
Adapter RingM52×0.75


  • Product Parameters Comparison
  • ModelMAL25MAL38MAH50
    Detector Parameters
    Resolution, pixels384 × 288640 × 512
    Pixel size, um12
    NETD, mk≤ 30≤ 25
    Frame rate, Hz50
    Optics Parameters
    Objective lens, mm253850
    Field of view (H x V), degrees / m @ 100 m10.6 × 7.9 / 18.4 × 13.87.0 × 5.3 / 12.3 × 9.28.8 × 7.0 / 15.4 × 12.3
    Recommended magnification of the day scope, xG1/G2/G3/G4:1 - 5G1/G2: 1 - 5G1/G2: 1 - 5
    G3/G4: 6 - 8G3/G4: 6 - 10
    E-zoomAttachment mode: ×1
    Monocular mode: ×1/×2/×4
    Detection range, m129819482597
    (Target size: 1.7m×0.5m, P(n)=99%)
    Display Parameters
    TypeOLED
    Resolution, pixels1024 × 768
    Electrical Parameters
    BatteryBuilt-in battery + Infiray battery Pack
    Max. battery life, h5 + 7.54 + 7
    USB InterfaceType-C
    Physic Parameters
    Body MaterialMagnesiumAlloy
    IP RatingIP67
    Remote controlSupport
    Built-in memory, GB32
    Aim point, MOA1.51
    Weight, g460500530
    Dimension, mm132 × 62 × 68138 × 62 × 71146 × 62 × 73
    Adapter RingM52×0.75
