Thermal Imaging Riflescope Tube TL50/TL35V2
Thermal Imaging Riflescope Tube TL50/TL35V2

Thermal Imaging Riflescope Tube TL50/TL35V2

Thermal Imaging Riflescope Tube TL50/TL35V2

The TL50/TL35V2 adds new functions to the former TL35 such as an expandable Laser Ranging Function to provide distance measurement, the upgraded OLED display and the built-in Mic to record sound. After the amelioration, the Tube TL50 will better serve as your night tool while keeping a traditional day scope appearance.



Ultra-Precise Boosted by Accurate Distance Measurement

Bluetooth LRF Optional

TL50/TL35V2 comes with an option of an expandable Laser Ranging Finder Function. TL50/TL35V2 is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting

Stadiametric Rangefinding

TL50/TL35V2 is equipped with the practical stadiametric rangefinding function to provide position reference for hunting. It will be automatically turned off once the bluetooth LRF is connected.1.png

1024X768 AMOLED Display

TL50/TL35V2 adopts a 1024X768 AMOLED display instead of a 1280x960 LCOS display of TL35. The imaging quality will be improved a lot for an AMOLED display will offer better layers and contrast.


Built-in microphone


TL50/TL35V2 is equipped with a MIC function, therefore customers can record the voice too when recording.

6 (2).png

12 µm Pixel Pitch

Featuring the self-researched, high-performance 12um detector, TL50/TL35V2 is able to provides high quality and detailed images.


Ultra-clear Mode

Built-in ultra-clear mode is designed for bad weather conditions, such as heavy fog and rain. It will make the Tube series more sensitive and capable of providing more details.


Extreme Detection Range(Target size: 1.7m×0.5m, P(n)=99%)

Combining the extraordinary sensor and the powerful optics, TL50(TL35V2) can achieve the detection range up to 2600m(1800m).


Sufficient Operation Time and Flexible Battery Choice

The working time of built-in battery is up to 12 hours, and the replaceable 18500 battery will provide an additional 3 hours of operation.


32GB

TL50/TL35V2 comes with 32GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app.



Download

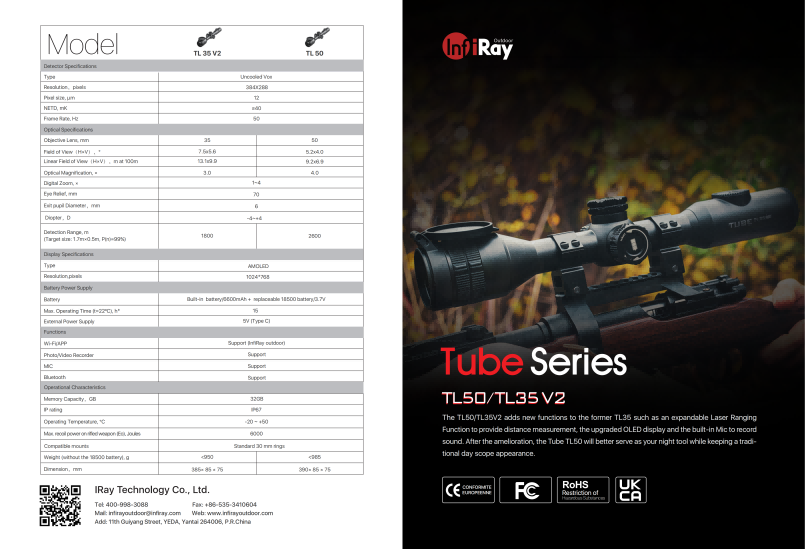

Brochure-Tube TL50/TL35V2

Brochure-Tube TL50/TL35V2

Manual-Tube TL50/TL35V2

Manual-Tube TL50/TL35V2

Quick Guide-TL50/TL35V2

Quick Guide-TL50/TL35V2
  • TL 35 V2
  • TL 50
ModelTL 35 V2
Detector Specifications
TypeUncooled Vox
Resolutionpixels384X288
Pixel size, μm12
NETD, mK≤40
Frame Rate, Hz50
Optical Specifications
Objective Lens, mm35
Field of ViewH×V),°7.5x5.6
Linear Field of ViewH×V),m at 100m13.1x9.9
Optical Magnification, ×3.0
Digital Zoom, ×1~4
Eye Relief, mm70
Exit pupil Diametermm6
DiopterD-4~+4
Detection Range, m

(Target size: 1.7m×0.5m, P(n)=99%)
1800
Display Specifications
TypeAMOLED
Resolution,pixels1024*768
Battery Power Supply
BatteryBuilt-in  battery/6600mAh +  replaceable 18500 battery/3.7V
Max. Operating Time (t=22ºC), h*15
External Power Supply5V (Type C)
Functions
Wi-Fi/APPSupport (InfiRay outdoor)
Photo/Video RecorderSupport
MICSupport
BluetoothSupport
Operational Characteristics
Memory CapacityGB32GB
IP ratingIP67
Operating Temperature, °C-20 ~ +50
Max. recoil power on rifled weapon (Eo),   Joules6000
Compatible mountsStandard 30 mm rings
Weight (without the 18500 battery), g<950
Dimensionmm385× 85 × 75


ModelTL 50
Detector Specifications
TypeUncooled Vox
Resolutionpixels384X288
Pixel size, μm12
NETD, mK≤40
Frame Rate, Hz50
Optical Specifications
Objective Lens, mm50
Field of ViewH×V),°5.2x4.0
Linear Field of ViewH×V),m at 100m9.2x6.9
Optical Magnification, ×4.0
Digital Zoom, ×1~4
Eye Relief, mm70
Exit pupil Diametermm6
DiopterD-4~+4
Detection Range, m

(Target size: 1.7m×0.5m, P(n)=99%)
2600
Display Specifications
TypeAMOLED
Resolution,pixels1024*768
Battery Power Supply
BatteryBuilt-in  battery/6600mAh +  replaceable 18500 battery/3.7V
Max. Operating Time (t=22ºC), h*15
External Power Supply5V (Type C)
Functions
Wi-Fi/APPSupport (InfiRay outdoor)
Photo/Video RecorderSupport
MICSupport
BluetoothSupport
Operational Characteristics
Memory CapacityGB32GB
IP ratingIP67
Operating Temperature, °C-20 ~ +50
Max. recoil power on rifled weapon (Eo),   Joules6000
Compatible mountsStandard 30 mm rings
Weight (without the 18500 battery), g<985
Dimensionmm390× 85 × 75


  • Product Parameters Comparison
  • ModelTL 35 V2  TL 50
    Detector Specifications
    TypeUncooled Vox
    Resolutionpixels384X288
    Pixel size, μm12
    NETD, mK≤40
    Frame Rate, Hz50
    Optical Specifications
    Objective Lens, mm3550
    Field of ViewH×V),°7.5x5.65.2x4.0
    Linear Field of ViewH×V),m at 100m13.1x9.99.2x6.9
    Optical Magnification, ×3.04.0
    Digital Zoom, ×1~4
    Eye Relief, mm70
    Exit pupil Diametermm6
    DiopterD-4~+4
    Detection Range, m

    (Target size: 1.7m×0.5m, P(n)=99%)
    18002600
    Display Specifications
    TypeAMOLED
    Resolution,pixels1024*768
    Battery Power Supply
    BatteryBuilt-in  battery/6600mAh   +  replaceable 18500 battery/3.7V
    Max. Operating Time (t=22ºC), h*15
    External Power Supply5V (Type C)
    Functions
    Wi-Fi/APPSupport (InfiRay outdoor)
    Photo/Video RecorderSupport
    MICSupport
    BluetoothSupport
    Operational Characteristics
    Memory CapacityGB32GB
    IP ratingIP67
    Operating Temperature, °C-20 ~ +50
    Max. recoil power on rifled weapon (Eo),   Joules6000
    Compatible mountsStandard 30 mm rings
    Weight (without the 18500 battery), g<950<985
    Dimensionmm385× 85 × 75390× 85 × 75
