Thermal Imaging Monocular EYE III Series EL25 / EL35 / EH35
Thermal Imaging Monocular EYE III Series EL25 / EL35 / EH35

Thermal Imaging Monocular EYE III Series EL25 / EL35 / EH35

Thermal Imaging Monocular EYE III Series EL25 / EL35 / EH35

Evolving from EYE series, EYE III keeps the accumulate tech strength of EYE II, but entrusts another mission: Improve your hunting efficiency. That is what EYE III is for, being user-oriented by providing ultra-clear imaging and ease of use.

On this basis, EYE III has been changed more in line with user needs, making it one of the best choices for your hunting gear.


Meet Eye Ⅲ Series


Ease of Use



Scroll Wheel Design

EYE III employs a scroll wheel. "Rotate + press down" can perform most of the operations done by traditional buttons to achieve efficient hunting.

With "Rotate + press down" you can enter standby mode or achieve shutdown after closing the lens cover to avoid wasting power.



Cool/Warm Mage Hue

Users can experience visually clearer imaging quality with rich details, highlight targets under cool hue, while warm hue gets softer imaging avoiding visual fatigue brought by long-time viewing.


Comfortable Eye Cover

The comfortable eye cover ensures that you won't disturb your target at night by leaking light. It also fits your eyes perfectly for comfortable viewing.


High Image Quality

EYE III features the newest image algorithms, is equipped with a high-performance thermal sensor with a NETD<25mK. It will help you discover sharper and more realistic image while the 1440×1080 AMOLED display will guarantee the image is well-presented.

The built-in Ultra-clear mode which increases thermal imaging clarity and overall details is designed for bad weather conditions.


A Variety of Base Magnification

The different models of the Eye series have different base magnifications, EL25 with 2.5x, EL35 with 3.5x , and EH35 with 2x, which can satisfy the different needs for target  identification.


Adjustable Contrast

Adjustable contrast allows users to choose the optimal viewing experience, balancing target visibility and background details.




A Battery Built for Coldness

Low temperature has less effect on battery of EYE III than normal batteries. EYE III is equipped with a built-in low-temperature resistant 4200mAh Li-ion battery, the operation time can reach 8h at 22°C and 7h at -20°C, and charging up to 80% in one hour via the USB-C charging port.








Firmware Upgrade through APP



When you connect the device with the App, it will automatically detect the firmware update information and pop up a reminder. Simply click on the reminder and get updated instantly, helping you upgrade your device easily.





Mic/Photo/video Record, 32GB Storage Capacity





Download

EYEⅢ User Manual V2.0- IT

EYEⅢ User Manual V2.0- IT

Brochure-NEW EYE III

Brochure-NEW EYE III

EYEⅢ User Manual V2.0- EN

EYEⅢ User Manual V2.0- EN

EYEⅢ User Manual V2.0- DE

EYEⅢ User Manual V2.0- DE

EYEⅢ User Manual V2.0- RU

EYEⅢ User Manual V2.0- RU

EYEⅢ User Manual V2.0- FR

EYEⅢ User Manual V2.0- FR

EYEⅢ User Manual V2.0- NL

EYEⅢ User Manual V2.0- NL

EYEⅢ User Manual V2.0- CZ

EYEⅢ User Manual V2.0- CZ

EYEⅢ User Manual V2.0- NO

EYEⅢ User Manual V2.0- NO

EYEⅢ User Manual V2.0- SE

EYEⅢ User Manual V2.0- SE

EYEⅢ User Manual V2.0- SK

EYEⅢ User Manual V2.0- SK

EYEⅢ User Manual V2.0- ES

EYEⅢ User Manual V2.0- ES

EYEⅢ User Manual V2.0- HU

EYEⅢ User Manual V2.0- HU

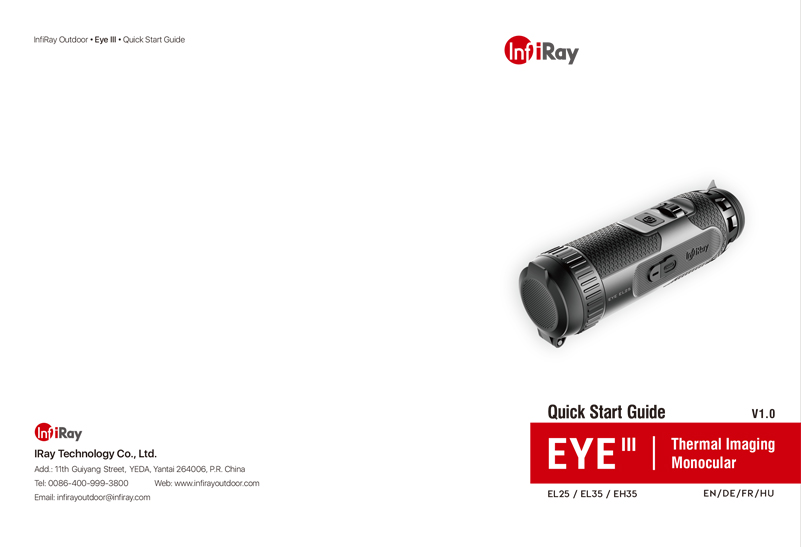

EYEⅢ Quick Start Guide

EYEⅢ Quick Start Guide

EYEⅢ User Manual V2.0- PL

EYEⅢ User Manual V2.0- PL
  • EL25
  • EL35
  • EH35
ModelEL25
Detector Specifications
Resolution, pixel384x288
Pixel Size, μm12
NETD≤25mK
Frame Rate,Hz50Hz
Optical Specifications
Objective Lens,mm25mm
Field of View(H×V),°10.5°x7.9°
Magnification, ×2.5~10
Eye Relief,mm20mm
Exit pupil Diameter,mm6mm
Diopter,D-3~+6D
Detection Range,m1300m
Display Specifications
TypeAMOLED
Resolution,pixels1440×1080
Battery Power Supply
TypeBuilt-in Li-ion Battery 4200mAh/3.6V
Max. operating Time(22℃)*,h8h
Physical Specifications
IP ratingIP67
InterfaceType C & 5V 2A
Mic
Display OFF
Memory32G
WIFI & APP
Weight< 480g
Dimension54x54x200


ModelEL35
Detector Specifications
Resolution,pixel384x288
Pixel Size, μm12
NETD≤25mK
Frame Rate,Hz50Hz
Optical Specifications
Objective Lens,mm35mm
Field of View(H×V),°7.5°x5.7°
Magnification, ×3.5~14
Eye Relief,mm20mm
Exit pupil Diameter,mm6mm
Diopter,D-3~+6D
Detection Range,m1800m
Display Specifications
TypeAMOLED
Resolution,pixels1440×1080
Battery Power Supply
TypeBuilt-in Li-ion Battery 4200mAh/3.6V
Max. operating Time(22℃)*,h8h
Physical Specifications
IP ratingIP67
InterfaceType C & 5V 2A
Mic
Display OFF
Memory32G
WIFI & APP
Weight< 480g
Dimension54x54x200


ModelEH35
Detector Specifications
Resolution,pixel640×512
Pixel Size, μm12
NETD≤25mK
Refresh Rate,Hz50Hz
Optical Specifications
Objective Lens,mm35mm
Field of View(H×V),°12.5°x10.0°
Magnification, ×2.0~8.0
Eye Relief,mm20mm
Exit pupil Diameter,mm6mm
Diopter,D-3~+6D
Detection Range,m1800m
Display Specifications
TypeAMOLED
Resolution,pixels1440×1080
Battery Power Supply
TypeBuilt-in Li-ion Battery 4200mAh/3.6V
Max. operating Time(22℃)*,h8h
Physical Specifications
IP ratingIP67
InterfaceType C & 5V 2A
Mic
Display OFF
Memory32G
WIFI & APP
Weight< 480g
Dimension54x54x200


  • Product Parameters Comparison
  • ModelEL25EL35EH35
    Detector Specifications
    Resolution,pixel384x288384x288640×512
    Pixel Size, μm121212
    NETD≤25mK≤25mK≤25mK
    Frame Rate,Hz50Hz50Hz50Hz
    Optical Specifications
    Objective Lens,mm25mm35mm35mm
    Field of View(H×V),°10.5°x7.9°7.5°x5.7°12.5°x10.0°
    Magnification, ×2.5~103.5~142.0~8.0
    Eye Relief,mm20mm20mm20mm
    Exit pupil Diameter,mm6mm6mm6mm
    Diopter,D-3~+6D-3~+6D-3~+6D
    Detection Range,m1300m1800m1800m
    Display Specifications
    TypeAMOLEDAMOLEDAMOLED
    Resolution,pixels1440×10801440×10801440×1080
    Battery Power Supply
    TypeBuilt-in Li-ion Battery 4200mAh/3.6V
    Max. operating Time(22℃)*,h8h8h8h
    Physical Specifications
    IP ratingIP67IP67IP67
    InterfaceType C & 5V 2A
    Mic
    Display OFF
    Memory32G32G32G
    WIFI & APP
    Weight< 480g< 480g< 480g
    Dimension54x54x20054x54x20054x54x200
