TUBE SE retains most of the highly recognized features of TUBE series in a surprisingly compact body with a lighter weight of only 720g. It also adopts a zoom ring to adjust magnification, a Bluetooth LRF to provide precise distance measurement and a controller instead of buttons. TUBE SE is sure to bring you an all-round easier experience.




Meet with TUBE SE Series

12um Sensor with NETD <25mK

TUBE SE is equipped with the 12um sensor with NETD < 25mK,which is lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.



Easier to Carry

TUBE SE has a body that only weighs 720g which is 28% less compared to the normal 1kg thermal riflescope.



Easier to Use

Zoom Ring

TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope. The zoom ring is made of silicone material, which is soft and comfortable, easy to twist and anti-slip.



Controller Controls Over 90% Functions

Over 90% functions can be completed by the controller of TUBE SE, the operation is simplified and to bring your more convenience during the night.



Easier to Shoot

    Bluetooth LRF

TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.



11h+ Working time

The working time of TUBE SE is up to 11 hours to keep your hunting going all night, so you don't need to take the power pack and extra charging accessories.


Built-in Mic

TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.



Download

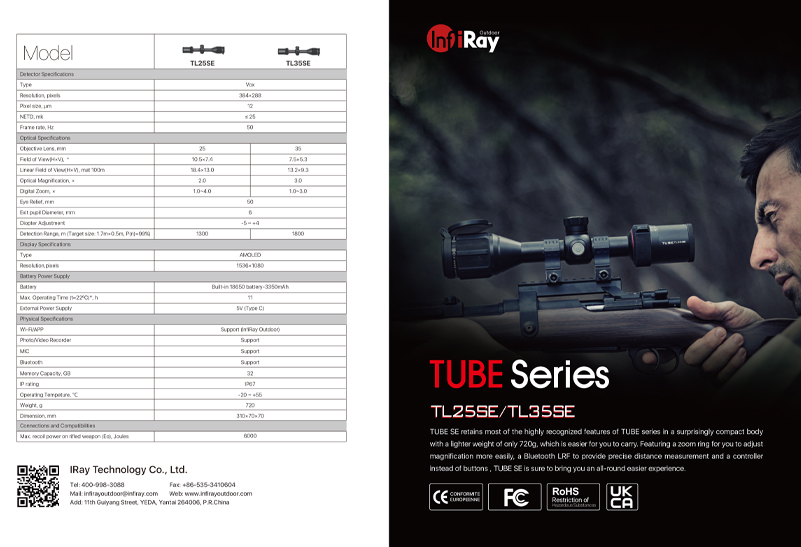

Brochure-Tube SE

Brochure-Tube SE

Manual-Tube SE

Manual-Tube SE

Quick Guide-Tube SE

Quick Guide-Tube SE
  • TL25 SE
  • TL35 SE
ModelTL25 SE
Detector   Specifications
TypeVox
Resolution,pixels384*288
Pixel Size,μm12
NETD,mK25
Frame Rate,Hz50
Optical   Specifications
Objective Lens,mm25
Field of View(H×V),°10.5x7.4
Linear Field of View(H×V),[email protected]18.4x13.0
Optical Magnification, ×2.0
Digital Zoom,×1.0~4.0x
Eye Relief,mm50
Exit Pupil Diameter,mm6
Diopter Adjustment-5~+4
Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)1300
Display Specifications
TypeAMOLED
Resolution,Pixels1536*1080
Battery Power Supply
BatteryBuilt-in   18650 battery-3350mAh
Max. Operating Time(22℃)*,h11
External Power Supply5V   (Type C)
Physical   Specifications
Wi-Fi/APPSupport   (InfiRay outdoor)
Photo/Video RecorderSupport
Recoil Activated VideoSupport
MICSupport
BluetoothSupport
Memory Capacity32GB
IP RatingIP67
Operating Tempeture,℃-20   ~ +50
Weight,g720
Dimension,mm310x70x70
Connections   and Compatibilities
Max. Recoil Power on Rifled Weapon (Eo), Joules6000
Compatible Mounts 25.4mm ring


ModelTL35 SE
Detector   Specifications
TypeVox
Resolution,pixels384*288
Pixel Size,μm12
NETD,mK25
Frame Rate,Hz50
Optical   Specifications
Objective Lens,mm35
Field of View(H×V),°7.5x5.3
Linear Field of View(H×V),[email protected]13.2x9.3
Optical Magnification, ×3.0
Digital Zoom,×1.0~3.0x
Eye Relief,mm50
Exit Pupil Diameter,mm6
Diopter Adjustment-5~+4
Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)1800
Display Specifications
TypeAMOLED
Resolution,pixels1536*1080
Battery Power Supply
BatteryBuilt-in   18650 battery-3350mAh
Max. operating Time(22℃)*,h11
External Power Supply5V   (Type C)
Physical   Specifications
Wi-Fi/APPSupport   (InfiRay outdoor)
Photo/Video RecorderSupport
Recoil Activated VideoSupport
MICSupport
BluetoothSupport
Memory Capacity32GB
IP RatingIP67
Operating Tempeture,℃-20   ~ +50
Weight,g720
Dimension,mm310x70x70
Connections   and Compatibilities
Max. Recoil Power on Rifled Weapon (Eo), Joules6000
Compatible Mounts 25.4mm ring


  • Product Parameters Comparison
  • ModelTL25 SETL35 SE
    Detector   Specifications
    TypeVoxVox
    Resolution,pixels384*288384*288
    Pixel Size,μm1212
    NETD,mk2525
    Frame Rate,Hz5050
    Optical   Specifications
    Objective Lens,mm2535
    Field of View(H×V),°10.5x7.47.5x5.3
    Linear Field of View(H×V),[email protected]18.4x13.013.2x9.3
    Optical Magnification, ×2.03.0
    Digital Zoom,×1.0~4.0x1.0~3.0x
    Eye Relief,mm50
    Exit Pupil Diameter,mm6
    Diopter Adjustment-5~+4
    Detection Range,m(Target size:1.7m×0.5m,P(n)=99%)13001800
    Display   Specifications
    TypeAMOLED
    Resolution, Pixels1536*1080
    Battery Power Supply
    BatteryBuilt-in   18650 battery-3350mAh
    Max. Operating Time(22℃)*,h11
    External Power Supply5V   (Type C)
    Physical   Specifications
    Wi-Fi/APPSupport   (InfiRay outdoor)
    Photo/Video RecorderSupport
    Recoil Activated VideoSupport
    MICSupport
    BluetoothSupport
    Memory Capacity32GB
    IP RatingIP67
    Operating Tempeture,℃-20 ~   +50
    Weight,g720
    Dimension,mm310x70x70
    Connections   and Compatibilities
    Max. Recoil Power on Rifled Weapon (Eo), Joules6000
    Compatible Mounts 25.4mm ring
