Thermal Imaging Monocular Finder Series- FH35R V2
Thermal Imaging Monocular Finder Series- FH35R V2

Thermal Imaging Monocular Finder Series- FH35R V2

Thermal Imaging Monocular Finder Series- FH35R V2

The Finder V2 takes a big leap in image quality and user experience. The thermal sensor has higher sensitivity and the objective lens is equipped with a bigger aperture. Together with inherited features, Finder V2 fits perfectly for the professional hunter, who demands excellent performance and ultra-portable design.



Meet with Finder FH35R V2


Fully-upgraded Image Quality


The 12µm 640×512 thermal sensor is upgraded to higher thermal sensitivity, reaching an NETD of Sub 20mk. In combination with the enlarged F0.9 aperture which allows for more radiation, Finder V2 is able to capture perfect details in challenging conditions.

画板 1.png


Agile and Precise LRF


Finder V2 features an up to 800 meters built-in LRF with a margin of error within 1 meter. The response rate is super quick, accurate rangefinding results can be presented without lag.

画板 2.png


11 Hours Replaceable Batteries


Finder V2 is equipped with two lithium-ion battery packs, which can be replaced easily even in a dark environment. The total battery life can reach up to 11 hours, and the charger supports in-vehicle charging, enjoying uninterrupted observation.

画板 3.png

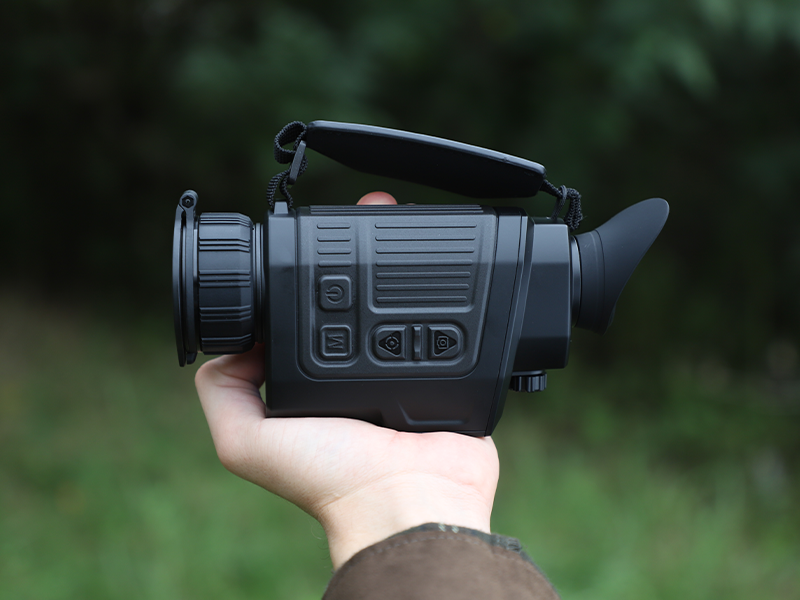

Finest Body Design


Finder V2 keeps the pocket-size design, IP67 waterproof & dust-proof rating, in the meantime, optimize the button material. The improved silicone button can still retain soft touch in cold temperatures.

画板 4.png

More Features

画板 5.png




Download

Manual- Finder V2

Manual- Finder V2

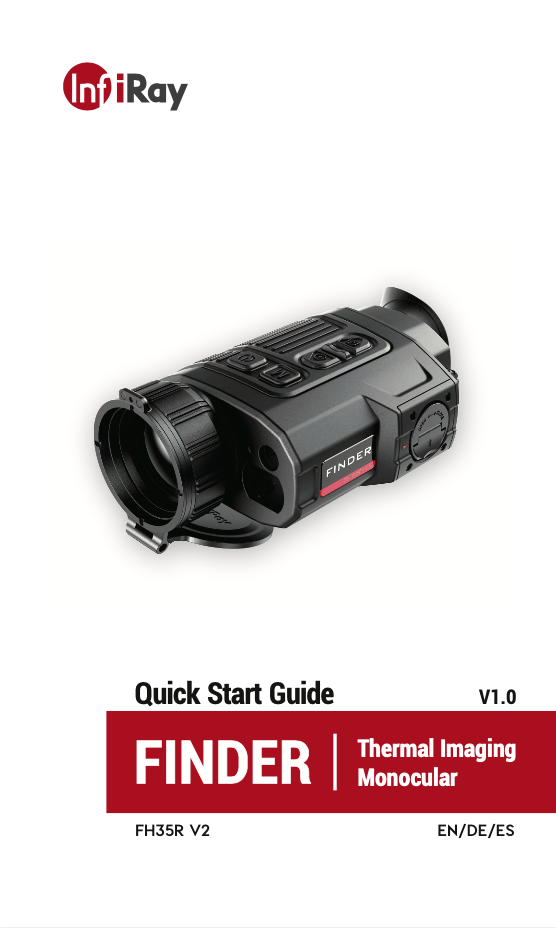

Quick Guide- Finder V2

Quick Guide- Finder V2

Brochure- Finder V2

Brochure- Finder V2
  • FH35R V2

Model

FH35R V2

Resolution, pixel

640×512

Pixel Size, μm

12

NETD

≤20mK

Frame Rate, Hz

50Hz

Objective Lens, mm

35mm/F0.9

Field of ViewH×V),°

10.5°×7.9°

Magnification, ×

2~8

Diopter, D

-5~+5D

Detection Range, m

1800m

Display Type

AMOLED

Display Resolution, pixels

1024×768

Battery Type

Replaceable Li-ion Battery pack

Max. Battery Life(22℃)*, h

5.5h×2

Laser rangefinder range, m

800±1

IP rating

IP67

Interface

Type C

Mic

YES

Auto Display OFF

YES

Memory

32G

WIFI & APP

YES

Weight

 400g

Dimension, mm

160×90×50


  • Product Parameters Comparison
  • Model

    FH35R V2

    Resolution, pixel

    640×512

    Pixel Size, μm

    12

    NETD

    ≤20mK

    Frame Rate, Hz

    50Hz

    Objective Lens, mm

    35mm/F0.9

    Field of ViewH×V),°

    10.5°×7.9°

    Magnification, ×

    2~8

    Diopter, D

    -5~+5D

    Detection Range, m

    1800m

    Display Type

    AMOLED

    Display Resolution, pixels

    1024×768

    Battery Type

    Replaceable Li-ion Battery pack

    Max. Battery Life(22℃)*, h

    5.5h×2

    Laser rangefinder range, m

    800±1

    IP rating

    IP67

    Interface

    Type C

    Mic

    YES

    Auto Display OFF

    YES

    Memory

    32G

    WIFI & APP

    YES

    Weight

     400g

    Dimension, mm

    160×90×50
