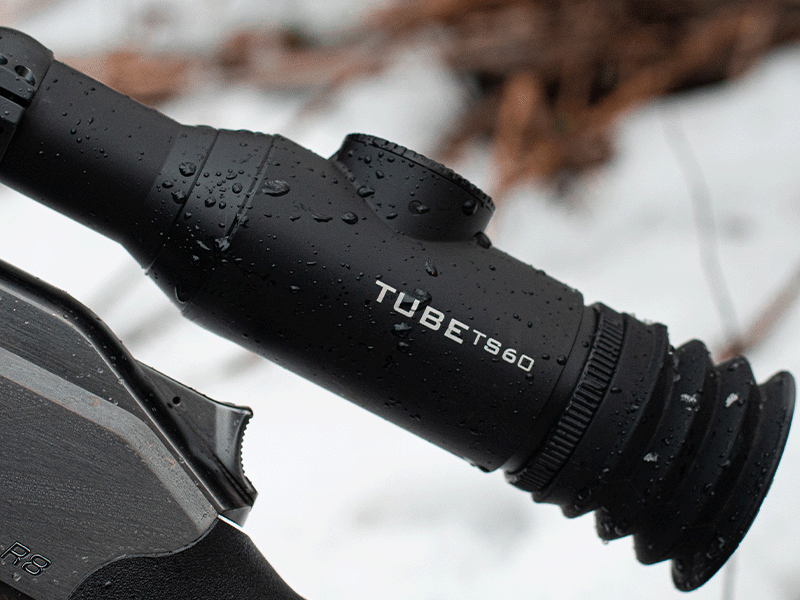

Thermal Imaging Riflescope TUBE Series- TS60
Thermal Imaging Riflescope TUBE Series- TS60

Thermal Imaging Riflescope TUBE Series- TS60

Thermal Imaging Riflescope TUBE Series- TS60

Introducing the flagship model from InfiRay Outdoor, equipped with a high-end thermal sensor. Through the integration of cutting-edge technologies, it delivers unparalleled high-definition image quality, tailored to the requirements of professional hunters.



Advanced Sensor Delivers Excellence


Featuring InfiRay's cutting-edge, self-developed thermal sensor, it showcases an impressive 1280x1024 pixel resolution and a remarkable NETD of sub 18mk, setting a new standard that enables it to capture even the slightest temperature variations in challenging outdoor environments.



Redefine High-Definition Viewing


Experience unprecedented clarity with the 1.03-inch, 2560x2560 round AMOLED display. Additionally, we've gone the extra mile by redesigning 7 distinct color palettes for users to choose from, enhancing observation experience like never before.



Long-distance Detection at Ease


Thanks to its high-end thermal sensor and high-definition display, the TS60 boasts an impressive 3100m long detection range. This means it has the capability to significantly enhance long-range hunting experiences, providing hunters with unprecedented advantages.



Immersive Shooting Experience


While emphasizing aesthetic design, the TS60 maintains an impressively lightweight body, ensuring that it won't cause fatigue even during extended usage. Moreover, it features ergonomic design elements such as soft-touch buttons, maximizing convenience for users and enhancing their overall comfort.



Ultra-long Battery Life


With its built-in 6600mAh battery and the option to add an additional 18650 standard battery (replaceable and rechargeable), the TS60 offers an extended maximum operating time of up to 9 hours (at 22℃), making it ideal for those extended hunting sessions. The TS60 is poised to become your most reliable companion during every ambush and hunting moment.



Rigorous Testing & High-durability


It is crafted using high-strength aluminum alloy materials that have undergone rigorous impact resistance testing. Its exceptional robustness and durability make TS60 a consistent companion for years to come.



Optional Accessories For More Possibilities


We also designed a selection of tools to elevate users’ hunting experience. For instance, the 1200m Laser Rangefinder with ballistic calculation - offered as an optional accessory for users to choose according to their needs. With the TS60, the possibilities are endless...



Photo/Video/MIC/32GB Icon



Download

Brochure_TS60

Brochure_TS60

Manual EN- TS60

Manual EN- TS60

Manual FR- TS60

Manual FR- TS60

Manual RU- TS60

Manual RU- TS60

Manual Spanish- TS60

Manual Spanish- TS60
  • TS60

Tube TS60

Detector Specifications

Type

Vox

Resolution, pixel

1280x1024

Pixel Size, μm

12

NETDmk

≤18

Frame Rate, Hz

50

Optical Specifications

Objective Lens, mm

60mm/F1.0

Field of ViewH×V),°

14.7 × 11.7

Linear Field of ViewHxV,m at 100m

25.6 x 20.5

Magnification, ×

2 ~ 16

Eye Relief, mm

50

Exit pupil Diameter, mm

6

Diopter, D

-5 ~+3.5

Detection RangemTarget size1.7m×0.5mP(n)=99%

3100

Display Specifications

Type

AMOLED 1.03”

Resolution, pixels

2560×2560

Battery Power Supply

Battery

Built-in battery / 6600mAh + replaceable 18650 battery/3200mAh

Max. operating Time(22),h

9

External Power Supply

5V (Type C)

Physical Specifications

Wi-Fi/APP

Support (InfiRay outdoor)

Photo/Video Recorder

Support

MIC

Support

Bluetooth

 Support

Memory Capacity

128GB

IP rating

IP67

Operating Tempeture

-20 ~ +50

Weightg

1000g

Dimensionmm

384×104×77

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules

6000

Click Value@100m, cm

2

Compatible mount

Standard 30mm rings



  • Product Parameters Comparison
