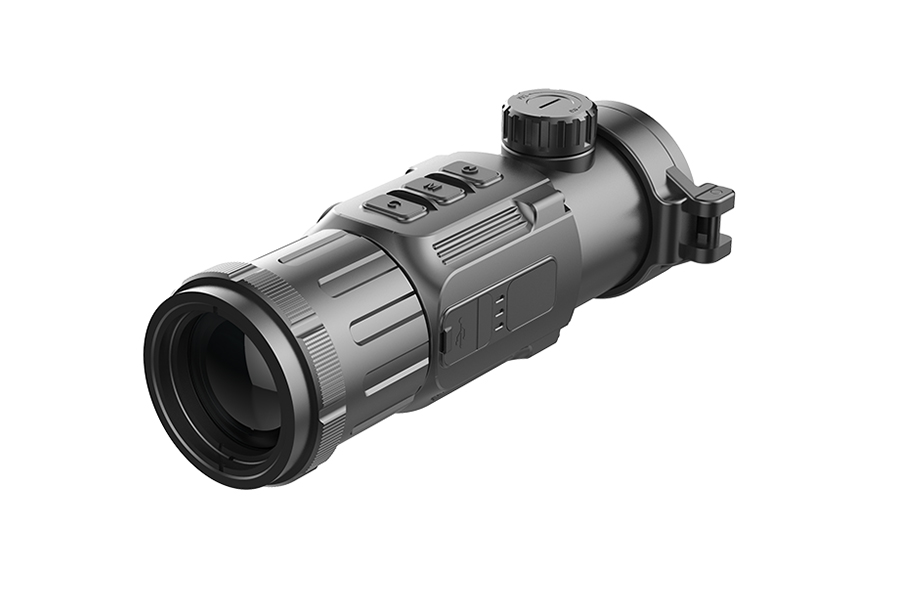

Thermal Imaging Attachment Clip CH50 Series

Thermal Imaging Attachment Clip CH50 Series

The Clip CH50 series is designed as thermal attachments formost traditional rifle scopes. NO REZEROING is needed, just CLAMP&SHOOT!Zoom the image 2times and 4times is supported on CH50 series without affecting the aiming accuracy when mounted on the day optics. Now expanding your hunting gear together with our CH50 series!


  • Product Details

The Clip CH50 series is designed as thermal attachments formost traditional rifle scopes. NO REZEROING is needed, just CLAMP&SHOOT!Zoom the image 2times and 4times is supported on CH50 series without affecting the aiming accuracy when mounted on the day optics. Now expanding your hunting gear together with our CH50 series!


Meet Clip CH50 Series



With front thermal imaging attachment the Clip CH50 Series users can receive several benefits over night vison hunting when using with traditional optics or even thermal or night vision scopes. After attaching the thermal Clip on to traditional sight you can reach the same creature comforts of shooting with day optics you are accustomed to, including your existing reticle and eye relief. The Clip CH50 Series thermal attachment even allows you to continue utilizing your riflescope's variable magnification.



High Image Quality

The 12um 640*512 resolution high performance InfiRay Vox thermal detector with NETD 40mk ensures prefer thermal detail recognition even in the hardest weather conditions. The smallest temperature differences will be precisely detected during the rainfall, fog, cold morning or other worse conditions for thermal imager.



No Re-Zeroing required and Quick attached

With the special calibration to the front thermal attachment CH50 series, No Re-zeroing is required after attaching to the day scopes. Clamp and Shoot, that’s it. With the quick release IAR-adapter mount, the Clip CH50 series can be easily attached to or detached from day optics in seconds without losing zeroing. The mount is capable of performing precise alignment of the attachment’s field of view with central point of the day optics in order to achieve the optimal viewing position.



E-zoom supported with shooting accuracy unaffected

2x/4x of digital zoom is enabled for Clip CH50 series. It supports adjusting the zooming center to align with the reticle center of your optical sight without affecting the shooting aiming accuracy. When used as thermal monocular or attachments, CH50 series supports 1x basic magnification with 2X/4X digital zooming.

Compared with the optical magnification of the same multiple of the optical sight, the thermal imaging quality after electronic magnification is more delicate and the details are kept perfectly complete.


Point-of-impact stability

The Clip CH50 series build precision workmanship. Cutting-edge design and advanced software deliver reliable, repeatable point-of-impact stability without requiring any windage or elevation adjustments from the day optics.



Ultra-clear Mode

The proprietary ultra-clearthermal imaging technology of InfiRay is comprised of software algorithms designed for inclement weather such as heavy fog and rain to increase thermal imaging clarity and overall thermal image detail. The built-in Ultra-clear mode results in a more detailed field of view and enhanced object identification capabilities.



Extended battery compartment

The CH50 series is equipped with an extended battery compartment which means using two 16650 batteries is allowed, users can receive additional using time and the maximized battery life of CH50 series is increased up to 7h.



Wireless Remote Control

Wireless remote control can be fixed near trigger which allows basic operations to be fulfilled easily.The ergonomic Blue tooth wireless remote control designed by InfiRay Outdoor with three buttons will put the full range of CH50 series operations at user’s fingertips.



Extended handheld eyepiece supported(CH50 V1)

Equipped with two kinds of eyepiece that can be used either as monocular or functional thermal front attachment for day optics. Operating as monocular it supports 2.9-11.6x magnification, perfectly suit basic needs for thermal monocular users.


Compatible with 1-9X day optics (CH50V2)

Benefit from the 48mm oversized eyepiece, the Clip CH50 V2 works best with 1-9× magnification optical sights. With the IAR-adapter, you can attach theClip CH50 V2to most traditional rifle scopes with objective lens diameters of 40mm-55mm and turn the optical sights into thermal imaging devices without affecting the point-of-impact.




Your Wise Choose With CH50 Series


Model

CH50 V1

CH50 V2

Resolution

640*512

Pixel size,um

12

NETD, mk

≤40

Frame rate, Hz

50

Objective lens, mm

50

Field of view

8.8°x7.0°

Recommended magnification of the day sight, x

1-6

1-9

Magnification

Attachment:1x/2x/4x


Attachment or Monocular:

1x/2x/4x


Monocular: 2.9x-11.6x

Display

1024*768 OLED

Built-in Motion Sensor and Digital Compass

Supported

Battery

CR123 x 2/16650 x 2

Max. battery life, h

4h/7h

Dimension,mm

167×74×68

175×74×68

Weight, g

<510

<570

Adapter ring mount

M52 x 0.75

Detection range, m

(Target size:1.7m×0.5m,P(n)=99%)

2597


(v1)

(V2)
